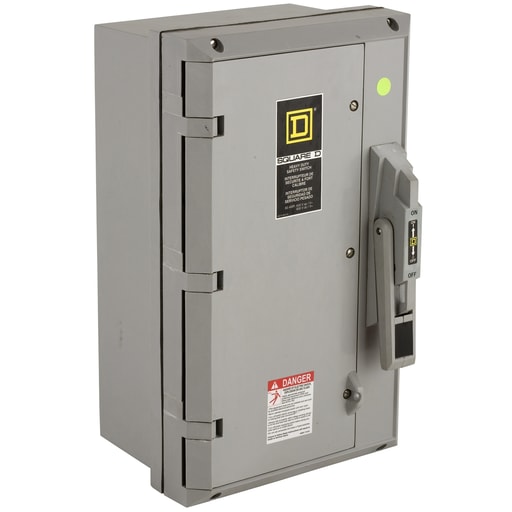

Square-D / Schneider - Square D H361DX 600 VAC 30 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

Essential specifications

12-Digit UPC - 785901011040
Amperage - 30 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H361DX
Conductor Size - 12-6 AWG (AL)/14-6 AWG (CU)

Packaging

1 ea

EAN

00785901011040

Part #

129333

Catalog #

H361DX

Commercial reference

H361DX

12-Digit UPC:

785901011040

Amperage:

30 Amp

Applications:

HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.

Catalog Number:

H361DX

Conductor Size:

12-6 AWG (AL)/14-6 AWG (CU)

Country of Origin:

Mexico

Current:

30 Amp

Depths:

8.6 Inch

Disconnect Type:

Fusible disconnect

ERP_productname:

SQD H361DX SWITCH FUSIBLE HD 30A 3P NEMA4X KRYDON

Enclosure:

Enclosure Material:

Stainless Steel

Enclosure Rating:

Family Brand Name:

Square D

Heights:

19.4 Inch

Mounting Type:

Surface

NEMA Size:

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Size:

11.4 IN,19.4 IN,8.6 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER,LUGS

Type:

SAFETY SWITCH

Voltage:

600 Volt

Wattage:

Widths:

11.4 in

Wire Size:

AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper

SoneparProductId:

SKU_US_26889534

The H361DX is a robust and reliable product offered by Schneider Electric. This product is a heavy-duty safety switch designed for industrial applications. With a durable construction, it is built to withstand demanding environments and provide long-lasting performance. The H361DX features a 600V voltage rating and a 30A current rating, making it suitable for a wide range of electrical systems. It offers a fusible, 3-pole design, allowing for safe and easy disconnection of power. The switch is equipped with a large, visible handle for effortless operation and includes lockout/tagout capabilities for enhanced safety. With its high-quality components and superior design, the H361DX is an ideal choice for industrial settings where safety and reliability are paramount. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9999TC10; 9999TC20
