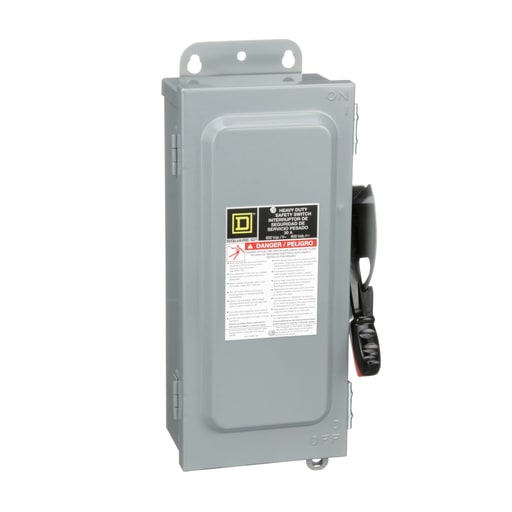

Square-D / Schneider - Square D H363A 600 VAC 100 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901482246
Amperage - 100 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H363A
Conductor Size - 12-1/0 AWG (AL)/14-1/0 AWG (CU)
Packaging
1 ea
EAN
00785901482246
Part #
211222
Catalog #
H363A
Commercial reference
H363A
12-Digit UPC:
785901482246
Amperage:
100 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H363A
Conductor Size:
12-1/0 AWG (AL)/14-1/0 AWG (CU)
Country of Origin:
USA
Current:
100 Amp
Depths:
7 Inch
Disconnect Type:
Fusible disconnect
ERP_productname:
SQD H363A SWITCH FUSIBLE HD 600V 100A 3P NEMA12K
Enclosure:
12K
Enclosure Material:
Steel
Enclosure Rating:
12K
Family Brand Name:
Square D
Heights:
20-1/2 Inch
Mounting Type:
Surface
NEMA Size:
12K
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Short Circuit Current:
10 kA
Size:
10.5 IN,20.5 IN,7 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 12...AWG 1/0 ALUMINIUM-AWG 14...AWG 1/0 COPPER,LUGS
Type:
SAFETY SWITCH
Voltage:
600 Volt
Wattage:
12 kW
Widths:
10.5 in
Wire Size:
AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
SoneparProductId:
SKU_US_26897896
