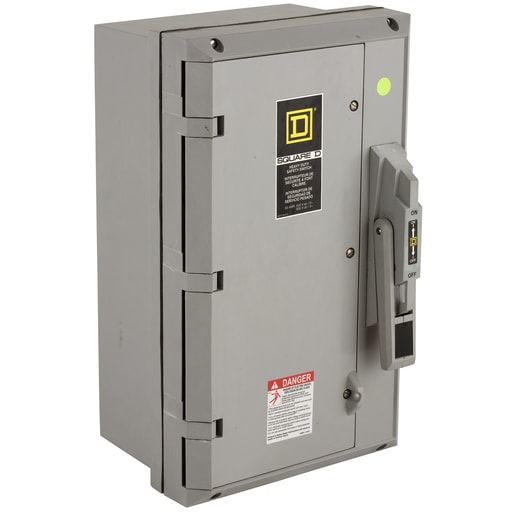

Square-D / Schneider - Square D H363DX 600 VAC 100 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch

12-Digit UPC:

785901629016

Amperage:

100 Amp

Applications:

HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.

Catalog Number:

H363DX

Conductor Size:

12-1/0 AWG (AL)/14-1/0 AWG (CU)

Country of Origin:

Mexico

Current:

100 Amp

Depths:

8.6 Inch

Disconnect Type:

Fusible disconnect

ERP_productname:

SQD H363DX SWITCH FUSIBLE HD 100A 3P NEMA4X KRYDON

Enclosure:

4X

Enclosure Material:

Stainless Steel

Enclosure Rating:

4X

Family Brand Name:

Square D

Heights:

25-1/4 Inch

Mounting Type:

Surface

NEMA Size:

4X

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Short Circuit Current:

10 kA

Size:

11.4 IN,25.25 IN,8.6 IN

Sub Brand:

HEAVY DUTY

Tc Connection:

AWG 12...AWG 1/0 ALUMINIUM-AWG 14...AWG 1/0 COPPER,LUGS

Type:

SAFETY SWITCH

Voltage:

600 Volt

Wattage:

4X

Widths:

11.4 in

Wire Size:

AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
