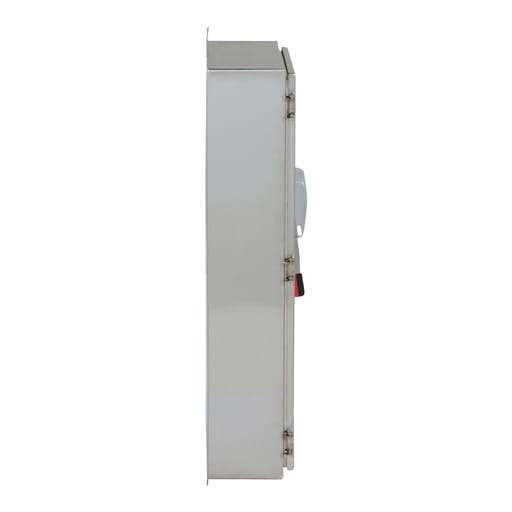

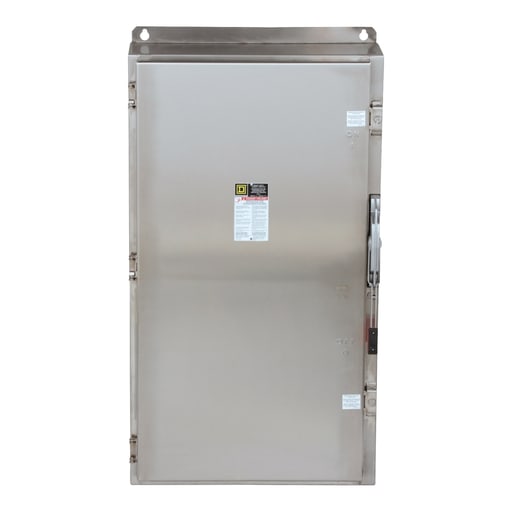

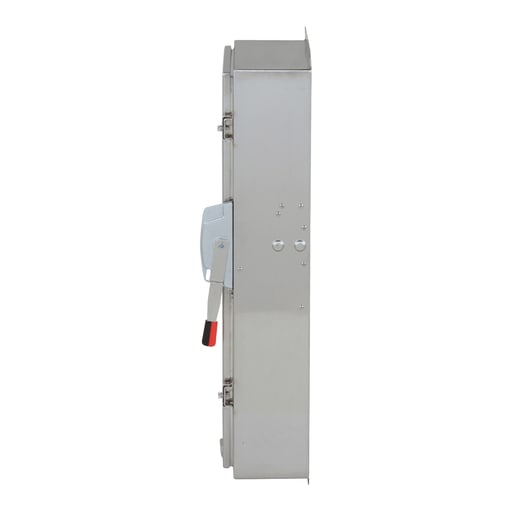

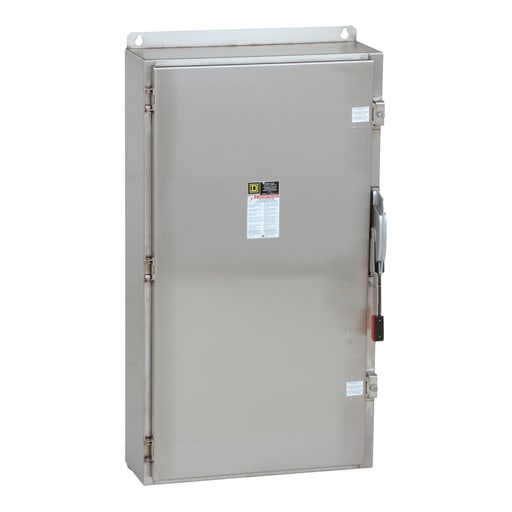

Square-D / Schneider - Square D H365NDS 600 VAC 400 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901195917
Amperage - 400 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H365NDS
Conductor Size - 1/0 AWG-750 kcmil
Packaging
1 ea
EAN
00785901195917
Part #
101412
Catalog #
H365NDS
Commercial reference
H365NDS
12-Digit UPC:
785901195917
Amperage:
400 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H365NDS
Conductor Size:
1/0 AWG-750 kcmil
Country of Origin:
USA
Current:
400 Amp
Depths:
10.13 Inch
Disconnect Type:
Fusible disconnect NULL
ERP_productname:
SQD H365NDS SW FUSIBLE HD 400A 3P STAINLESS/NEUTRAL
Enclosure:
4,4X,5
Enclosure Material:
Stainless Steel
Family Brand Name:
Square D
Heights:
46-1/4 Inch
Mounting Type:
Surface
NEMA Size:
4,4X,5
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Short Circuit Current:
10 kA
Short Circuit Current Ratng:
10 kA
Size:
10.13 IN,26.25 IN,46.25 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 1/0...750 KCMIL COPPER OR ALUMINIUM,LUGS
Type:
SAFETY SWITCH
Voltage:
600 Volt
Wattage:
4 4X 5
Widths:
26.25 in
SoneparProductId:
SKU_US_26646906
