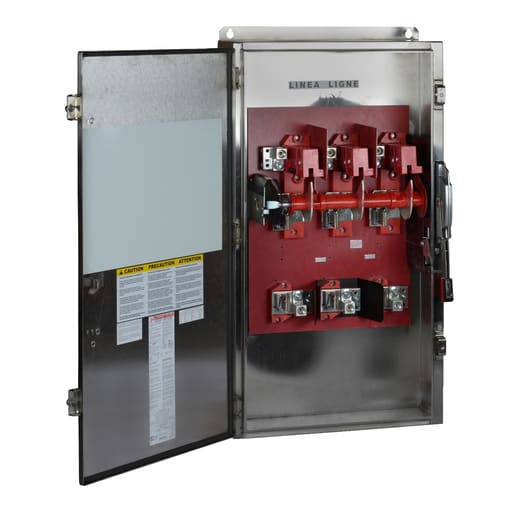

Square-D / Schneider - Square D H366DS 600 VAC 600 Amp 3-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901259435
Amperage - 600 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H366DS
Conductor Size - 3/0 AWG-500 kcmil
Packaging
1 ea
EAN
00785901259435
Part #
213231
Catalog #
H366DS
Commercial reference
H366DS
12-Digit UPC:
785901259435
Amperage:
600 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H366DS
Conductor Size:
3/0 AWG-500 kcmil
Country of Origin:
Mexico
Current:
600 Amp
Depths:
10.13 Inch
Disconnect Type:
Fusible disconnect
ERP_productname:
SQD H366DS SWITCH FUSIBLE HD 600A 3P STAINLESS
Enclosure:
4,4X,5
Enclosure Material:
Stainless Steel
Enclosure Rating:
4, 4X, 5
Family Brand Name:
Square D
Heights:
46-1/4 Inch
Mounting Type:
Surface
NEMA Size:
4,4X,5
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Short Circuit Current:
10 kA
Short Circuit Current Ratng:
10 kA
Size:
10.13 IN,26.25 IN,46.25 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 3/0...500 KCMIL COPPER OR ALUMINIUM,LUGS
Type:
SAFETY SWITCH
Voltage:
600 Volt
Wattage:
4 4X 5
Widths:
26.25 in
Wire Size:
AWG 3/0...500 kcmil copper or aluminium
SoneparProductId:
SKU_US_26543639
