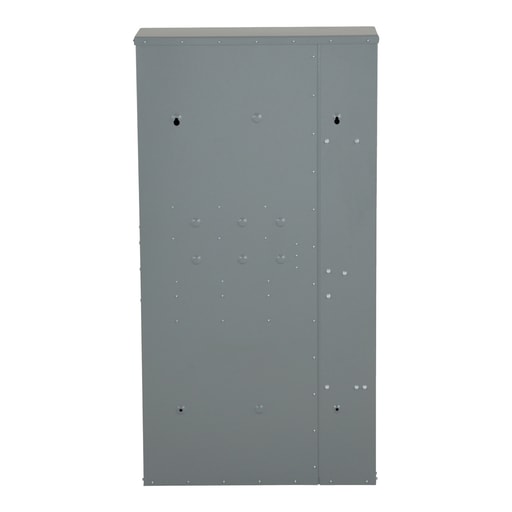

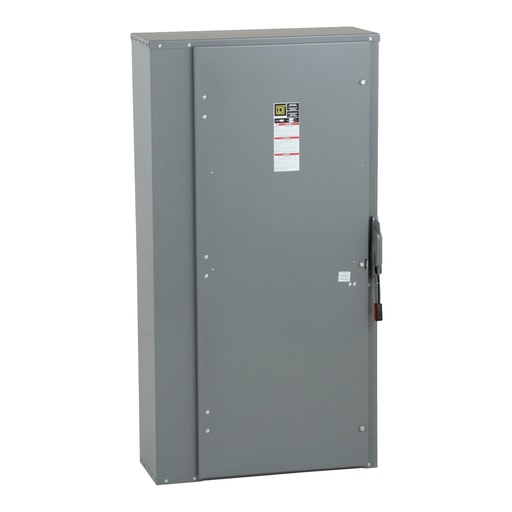

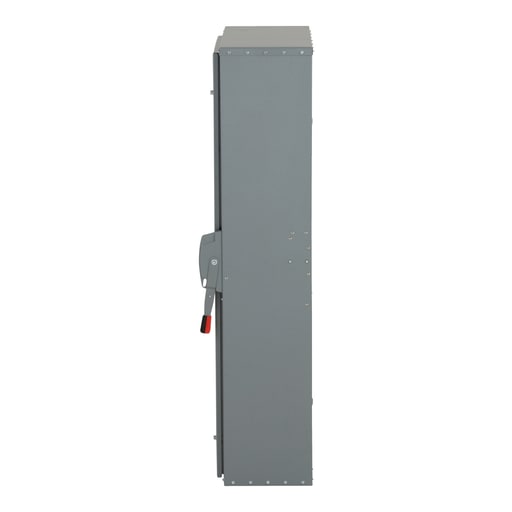

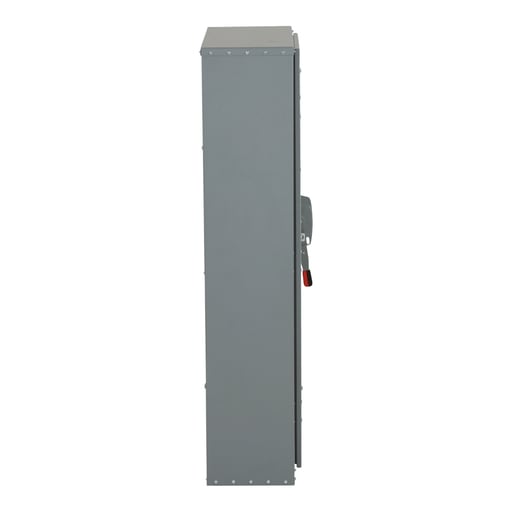

Square-D / Schneider - Square D H368 600 VAC 1200 Amp 3-Pole Class L Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901195467
Amperage - 1,200 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H368
Conductor Size - 3/0 AWG-750 kcmil
Packaging
1 ea
EAN
00785901195467
Part #
158461
Catalog #
H368
Commercial reference
H368
12-Digit UPC:
785901195467
Amperage:
1,200 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H368
Conductor Size:
3/0 AWG-750 kcmil
Country of Origin:
Mexico
Current:
1200 Amp
Depths:
17-3/4 Inch
Disconnect Type:
Fusible disconnect NULL
ERP_productname:
SQD H368 3P 1200A 600V SFTY SW
Enclosure:
1
Enclosure Material:
Steel
Family Brand Name:
Square D
Heights:
69.13 Inch
Mounting Type:
Surface
NEMA Size:
1
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Short Circuit Current:
200 kA
Short Circuit Current Ratng:
200 kA
Size:
17.75 IN,36.62 IN,69.13 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 3/0...750 KCMIL COPPER OR ALUMINIUM,LUGS
Type:
SAFETY SWITCH
Voltage:
600 Volt
Wattage:
1 Watt
Widths:
36.62 in
SoneparProductId:
SKU_US_26412336
