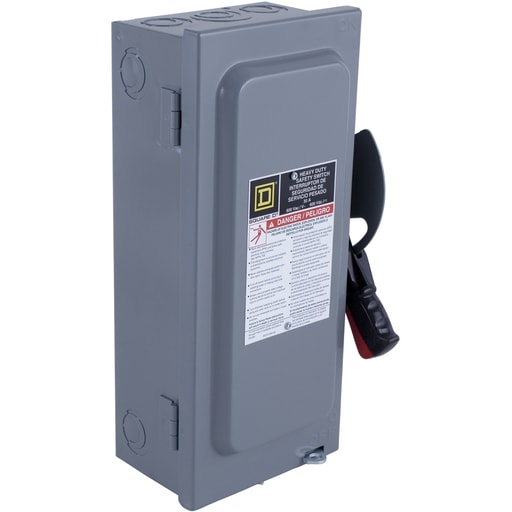

Square-D / Schneider - Square D H461 600 VAC 30 Amp 4-Pole Class H/J/K/L/R Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901868330
Amperage - 30 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - H461
Conductor Size - 12-6 AWG (AL)/14-6 AWG (CU)
Packaging
1 ea
EAN
00785901868330
Part #
219957
Catalog #
H461
Commercial reference
H461
12-Digit UPC:
785901868330
Amperage:
30 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
H461
Conductor Size:
12-6 AWG (AL)/14-6 AWG (CU)
Country of Origin:
USA
Current:
30 Amp
Depths:
6.85 Inch
Disconnect Type:
Fusible disconnect NULL
ERP_productname:
SQD H461 SWITCH FUSIBLE HD 600V 30A 4P NEMA1
Enclosure:
1
Enclosure Material:
Stainless Steel
Family Brand Name:
Square D
Heights:
20-1/2 Inch
Mounting Type:
Surface
NEMA Size:
1
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Short Circuit Current:
10 kA
Short Circuit Current Ratng:
10 kA
Size:
16.13 IN,20.5 IN,6.85 IN
Sub Brand:
HEAVY DUTY
Tc Connection:
AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER,LUGS
Type:
SAFETY SWITCH
Voltage:
600 Volt
Wattage:
1 Watt
Widths:
16.13 in
SoneparProductId:
SKU_US_26342981
