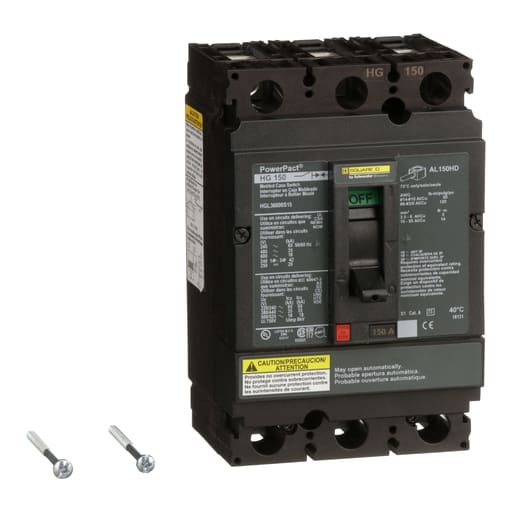

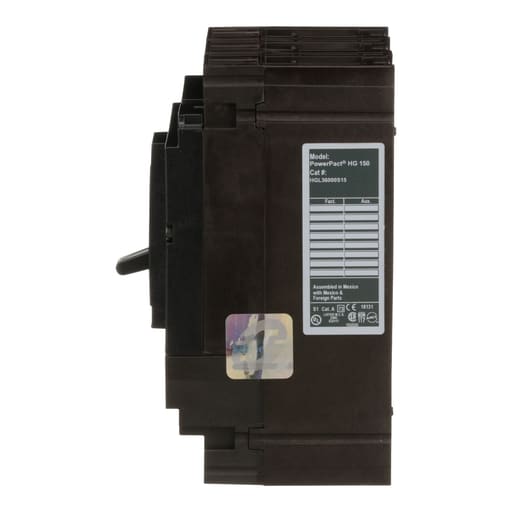

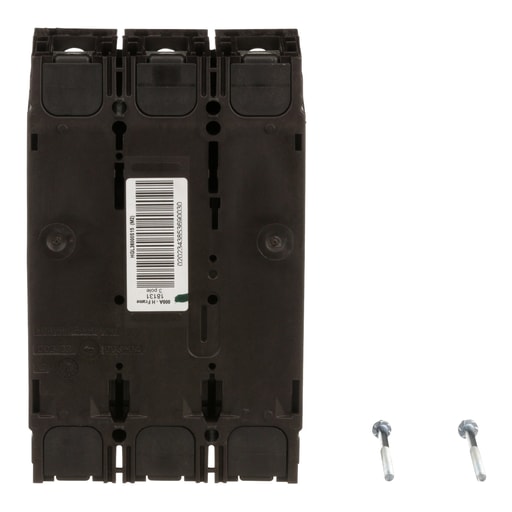

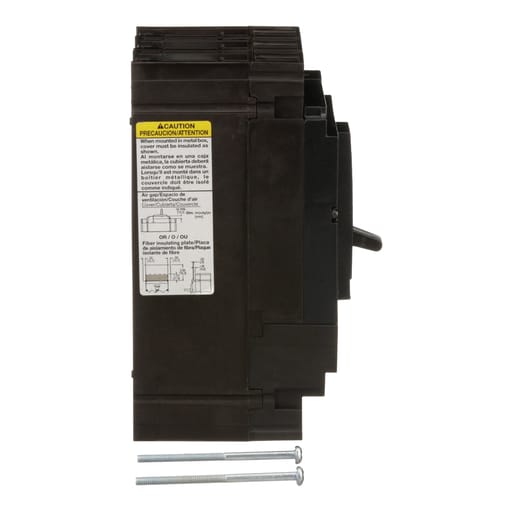

Square-D / Schneider - Square D HGL36000S15 600 Volt 150 Amp Automatic Molded Case Switch

PowerPacT H-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the H-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT H-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch is unit mount and has lugs on both line and load sides. This PowerPacT H, 150A, 3 pole, automatic switch has a short circuit withstand current rating of 18kA at 600VAC. PowerPacT H automatic switches comply to UL and CSA standards. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: S29450; S37432; S29386; S29451; S29390; S29452; S37423; S37447; S37446; S29329; S29370; PDC3HD2; H2PHLA; S37444; S29369; S37426; S29354; LV426920; S29375; AL150HD; S29338; CU150HD; S29337; YA060HD; PDC6HD6; HJPA; HJPAF
