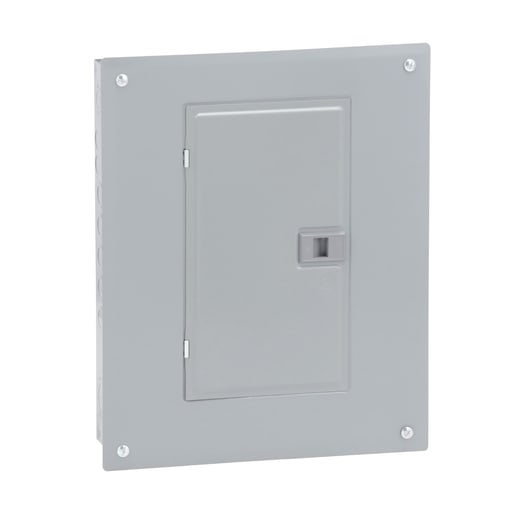

Square-D / Schneider - Square D HOM1224L125PGC 120/240 VAC 125 Amp 1-Phase 12-Space 24-Circuit NEMA 1 Load Center

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 125A 120/240 VAC single phase. Load center has a grounding bar. Homeline load center provides a 10 kA breaking capacity. This system provides 12 spaces in a NEMA 1 indoor enclosure with a combination flush/surface cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 17.92 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: HOM115; HOM115CAFI; HOM115DF; HOM115GFI; HOM115PCAFI; HOM115PDF; HOM120; HOM120CAFI; HOM120CP; HOM120DF; HOM120EPD; HOM120GFI; HOM120HM; HOM120PCAFI; HOM120PDF; HOM125; HOM130; HOM130CP; HOM2100; HOM2110; HOM2125; HOM215; HOM2150; HOM215CAFI; HOM215GFI; HOM2175BB; HOM220; HOM2205219; HOM220CAFI; HOM220CP; HOM220EPD; HOM220GFI; HOM225; HOM2255219; HOM230; HOM2305219; HOM230GFI; HOM235; HOM240; HOM240GFI; HOM245; HOM250; HOM250GFI; HOM250PSPD; HOM260; HOM260CP; HOM270; HOM280; HOM290; HOMFPCP; HOML2125; HOMT1515; HOMT1515215; HOMT1515220; HOMT1515230; HOMT1515240; HOMT1515250; HOMT1515CP; HOMT1520; HOMT2020; HOMT2020220; HOMT2020230; HOMT2020240; HOMT2020250; HOMT2020CP; HOMT215215; HOMT215220; HOMT215230; HOMT215240; HOMT215250; HOMT220220; HOMT220230; HOMT220240; HOMT220250; HOMT230230; HOMT230240; HOMT230250; HOMT3020; PKGTALP1; PSDS; HOM115PCAFIC; HOM2175SB; HEPD25; HOM120PDFC; HEPD50; HOM230CP; HEPD80; HOM115CP; HEPD25MKF; HOM120PCAFIC; HEPD58MKF; HOM250CP; HOM240CP; HOM115PDFC; QOM125VHCP
