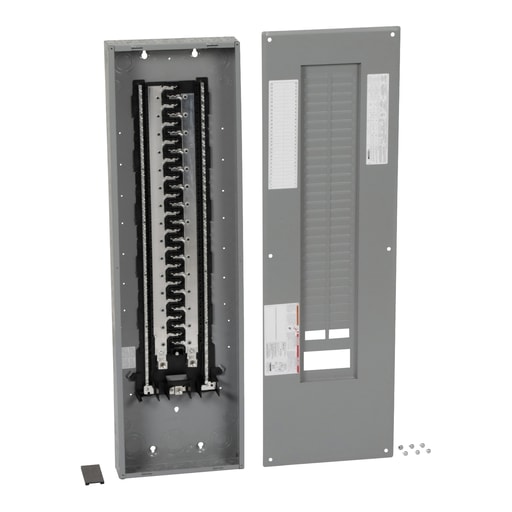

Square-D / Schneider - Square D HOM60120L225PC 120/240 VAC 225 Amp 1-Phase 60-Space 120-Circuit NEMA 1 Load Center with Cover

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with convertible mains that are rated at 225A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 60 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire. This Homeline load center has a height of 48.62 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: HOM115CP; HOM250PSPD; HOMFPCP; PK27GTA; HOM115PCAFIC; HOM2175SB; PK23GTA; HEPD25; HOM115PDFC; HEPD50; HOM120CP; HEPD80; HOM120PCAFIC; HEPD25MKF; HOM120PDFC; HEPD58MKF; HOM230CP; HOM240CP; HOM250CP; QOM2200VH
