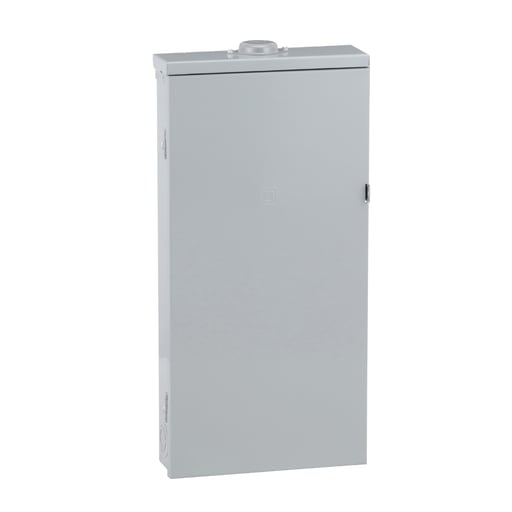

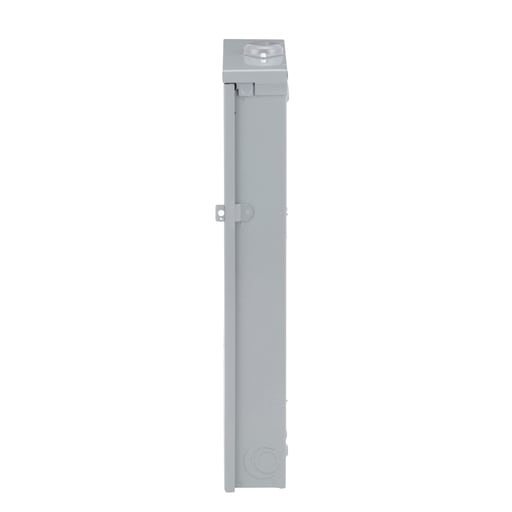

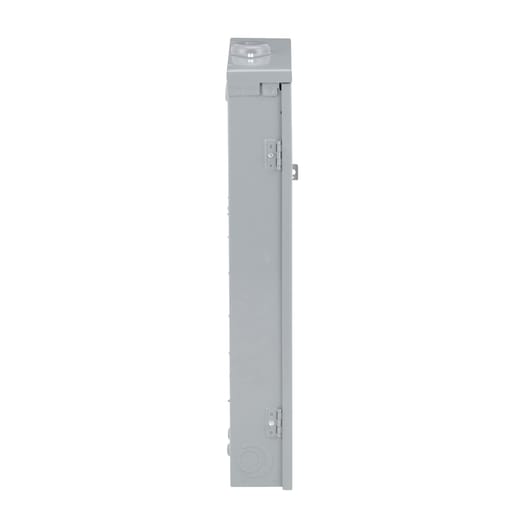

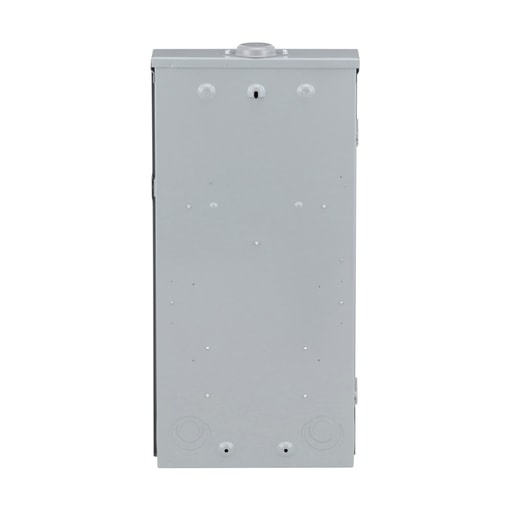

Square-D / Schneider - Square D HOM816M200PFTRB 120/240 VAC 200 Amp 1-Phase 8-Space 16-Circuit NEMA 3R Load Center

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 200A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 8 spaces in a NEMA 3R rain proof enclosure. The electrical connections are feed thru lugs. The lugs will accept a wire range of 4 AWG to 250 kcmil copper or aluminum wire. This Homeline load center has a height of 29.84 inches, a width of 14.76 inches, and depth of 4.52 inches. Homeline load centers are UL Listed. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: HOM115; HOM115CAFI; HOM115DF; HOM115GFI; HOM115PCAFI; HOM115PDF; HOM120; HOM120CAFI; HOM120CP; HOM120DF; HOM120EPD; HOM120GFI; HOM120HM; HOM120PCAFI; HOM120PDF; HOM125; HOM130; HOM130CP; HOM2100; HOM2110; HOM2125; HOM215; HOM2150; HOM2150BB; HOM215CAFI; HOM215GFI; HOM2175BB; HOM220; HOM2200BB; HOM2200CP; HOM2205219; HOM220CAFI; HOM220CP; HOM220EPD; HOM220GFI; HOM225; HOM2255219; HOM230; HOM2305219; HOM230GFI; HOM235; HOM240; HOM240GFI; HOM245; HOM250; HOM250GFI; HOM250PSPD; HOM260; HOM260CP; HOM270; HOM280; HOM290; HOMRBGK2C; HOMT1515; HOMT1515215; HOMT1515220; HOMT1515230; HOMT1515240; HOMT1515250; HOMT1515CP; HOMT1520; HOMT2020; HOMT2020220; HOMT2020230; HOMT2020240; HOMT2020250; HOMT2020CP; HOMT215215; HOMT215220; HOMT215230; HOMT215240; HOMT215250; HOMT220220; HOMT220230; HOMT220240; HOMT220250; HOMT230230; HOMT230240; HOMT230250; HOMT3020; KITWISER2PLUGCO_TO; KIT_WISER2PLUG_TO; PK15GTA; PSDS; HOM115PCAFIC; HOM2175SB; HOMFPCP; PK7GTA; HEPD25; HOM120PDFC; HEPD50; HOM230CP; HEPD80; HOM115CP; HEPD25MKF; HOM120PCAFIC; HEPD58MKF; HOM250CP; HOM240CP; HOM2100C; HOM115PDFC
