Square-D / Schneider - Square D HOMT1515240 120/240 Volt 15 Amp Miniature Circuit Breaker

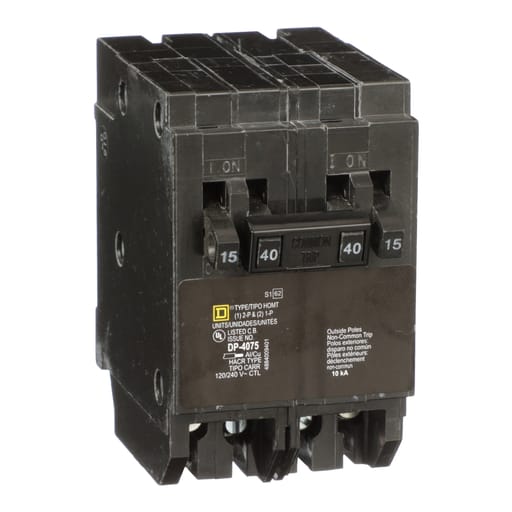

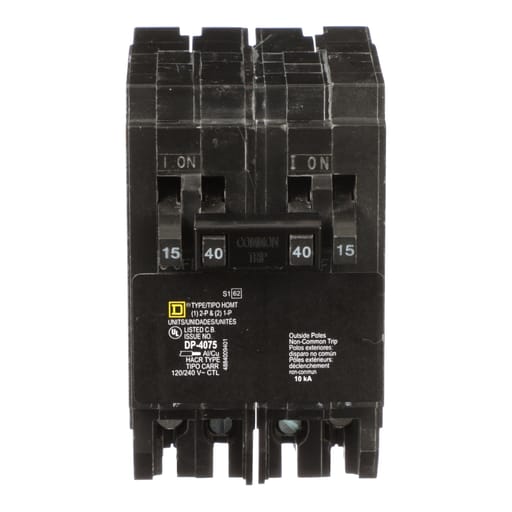

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 40A at 120/240 VAC and the single pole breakers are rated 15A and 15A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 2 pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or 12 AWG to 6 AWG aluminum wire. The single pole breakers of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed. Compatible Products: HOM1HT; HOM3060L225PGC; HOM4080M200PC; HOM3060M200PC; HOM612L100RB; HOMQPA; HOMTHT; HOM2448L125PGC; HOM816M200PFTRB; QO1LO; HOM2040L125PGC; HOM2040M100PC; HOM2HBD; HOM1PA; HOM4080L225PGC; HOM4080M200PCVP; HOM1224L125PGC; HOM2PALA; HOM4080L225PC; QOM1PA; HOM612L125ICU; HOM2448L125PQGC; HOM2040L125PC; HOM1224L125PRB; HOM1224L125PC; HOM4284L225PC
