Square-D / Schneider - Square D HOMT2020225 120/240 Volt 20 Amp Miniature Circuit Breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901306344
Catalog Number - HOMT2020225
Circuit Breaker Type - Quad Tandem
Conductor Size - 14-8 AWG
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901306344
Part #
183500
Catalog #
HOMT2020225
Commercial reference
HOMT2020225
12-Digit UPC:
785901306344
Catalog Number:
HOMT2020225
Circuit Breaker Type:
Quad Tandem
Conductor Size:
14-8 AWG
Country of Origin:
Mexico
Current:
20 Amp
Depths:
2.98 Inch
ERP_productname:
SQD HOMT2020225 MINIATURE CIRCUIT BREAKER 120/240V 20A
Family Brand Name:
Square D
Heights:
3.13 Inch
Mounting Type:
Plug-in
Number of Poles:
1-2 Pole
Short Circuit Current:
10 kA
Short Circuit Current Ratng:
10 kA
Voltage:
120/240 Volt
Widths:
2 in
SoneparProductId:
SKU_US_25979815

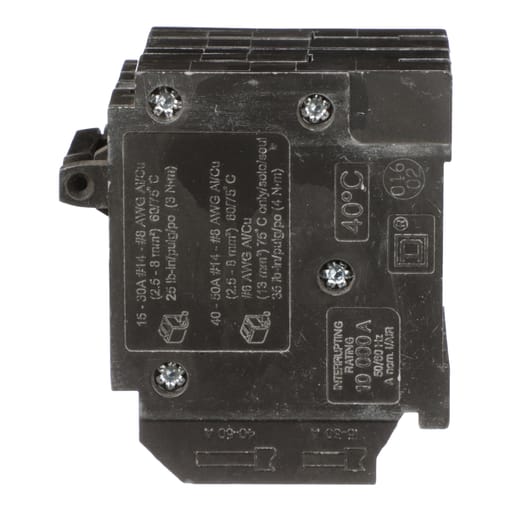

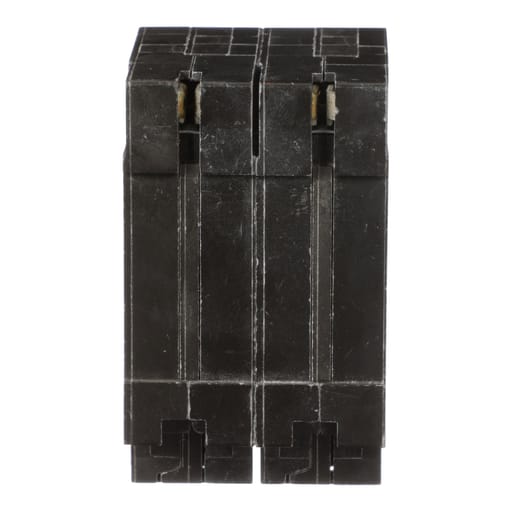

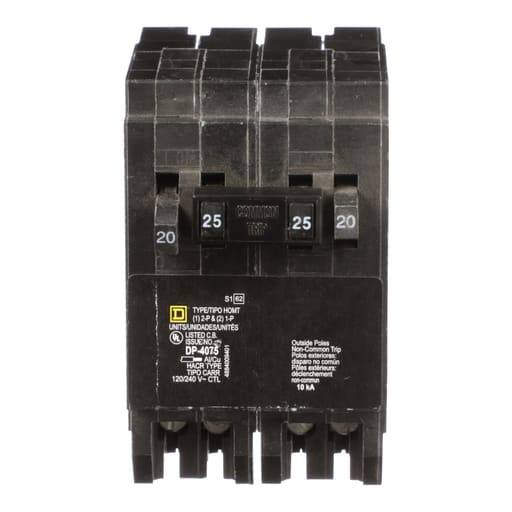

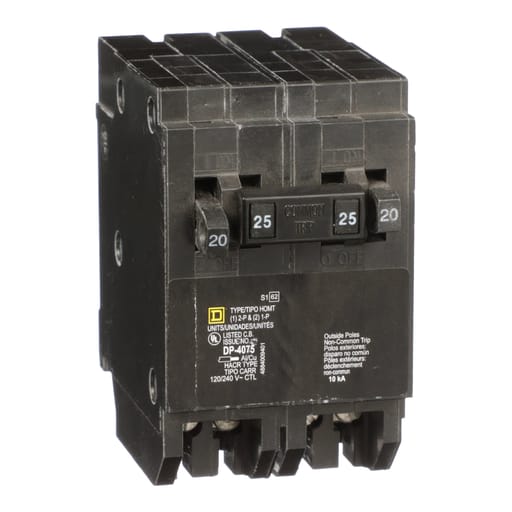

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 25A at 120/240 VAC and the single pole breakers are rated 20A and 20A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed. Compatible Products: HOM1HT; HOMTHT; QO1LO; HOM2HBD; HOM1PA; HOM2PALA; QOM1PA
