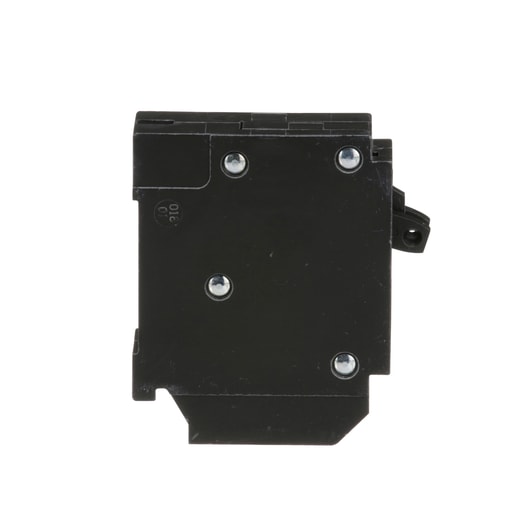

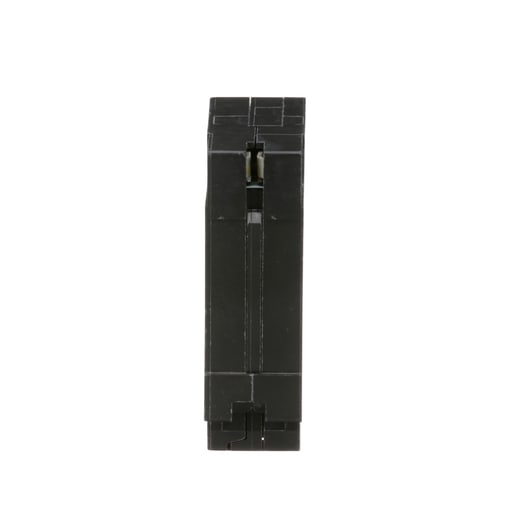

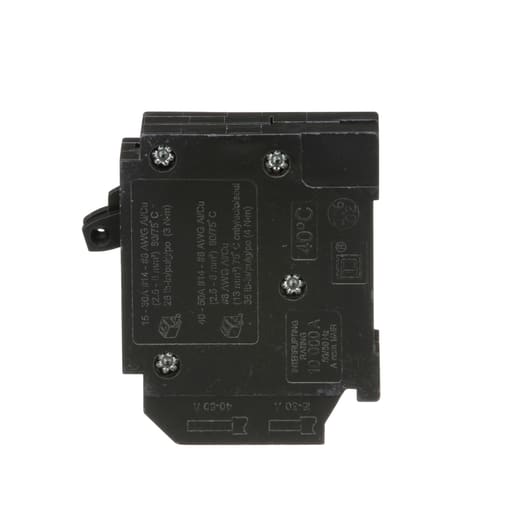

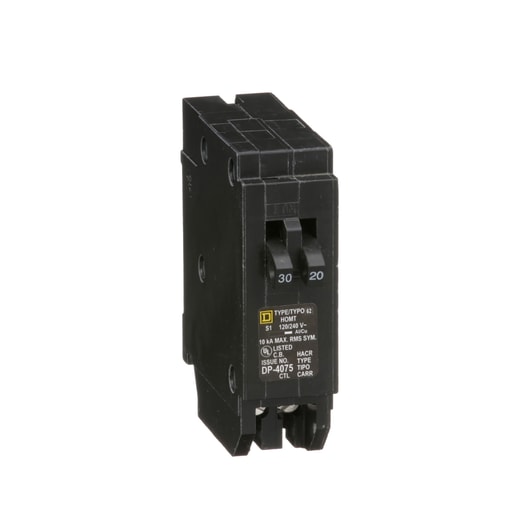

Square-D / Schneider - Square D HOMT3020 1-Pole 30/20 Amp 120/240 Volt Plug-On Thermal Magnetic Miniature Circuit Breaker

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM miniature tandem breaker with plug in mounting is rated 30A and 20A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed. Compatible Products: HOM1HT; HOM3060L225PGC; HOM4080M200PC; HOM3060M200PC; HOM612L100RB; HOMTHT; HOM2448L125PGC; HOM816M200PFTRB; QO1LO; HOM2040L125PGC; HOM2040M100PC; HOM2HBD; HOM1PA; HOM4080L225PGC; HOM4080M200PCVP; HOM1224L125PGC; HOM2PALA; HOM4080L225PC; QOM1PA; HOM612L125ICU; HOM2448L125PQGC; HOM2040L125PC; HOM1224L125PRB; HOM1224L125PC; HOM4284L225PC; HOM3060L125PC
