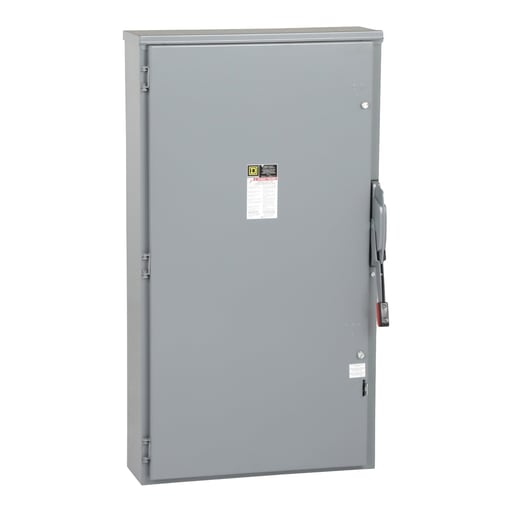

Square-D / Schneider - Square D HU265R 600 VAC 400 Amp 2-Pole Non-Fusible Heavy Duty Safety Switch

Essential specifications

12-Digit UPC - 785901829348
Amperage - 400 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - HU265R
Conductor Size - 1/0 AWG-750 kcmil

Packaging

1 ea

EAN

00785901829348

Part #

135732

Catalog #

HU265R

Commercial reference

HU265R

12-Digit UPC:

785901829348

Amperage:

400 Amp

Applications:

HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.

Catalog Number:

HU265R

Conductor Size:

1/0 AWG-750 kcmil

Country of Origin:

USA

Current:

400 Amp

Depths:

10.13 Inch

Disconnect Type:

Non-fusible disconnect

ERP_productname:

SQD HU265R SW NOT FUSIBLE HD 600V 400A 2P NEMA3R

Enclosure:

Enclosure Material:

Steel

Enclosure Rating:

Family Brand Name:

Square D

Heights:

50.31 Inch

Mounting Type:

Surface

NEMA Size:

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Short Circuit Current:

200 kA

Size:

10.13 IN,27.88 IN,50.31 IN

Tc Connection:

LUGS

Type:

SAFETY SWITCH

Voltage:

240 Volt

Widths:

27.88 in

Wire Size:

AWG 1/0...750 kcmil copper or aluminium

SoneparProductId:

SKU_US_26906400

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: EIK40601; EIK40602; H600SN; SS4060LI; SS4060LO; PKOGTA2
