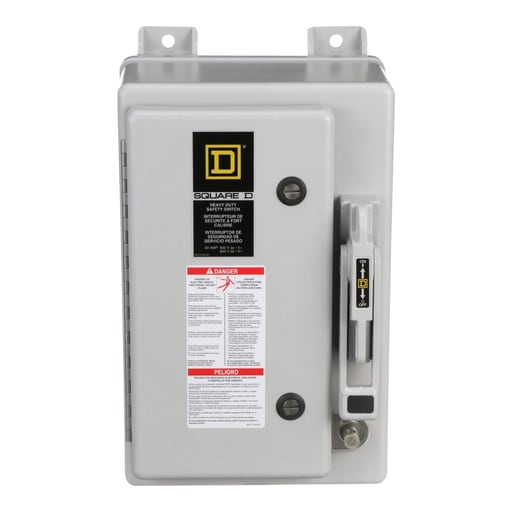

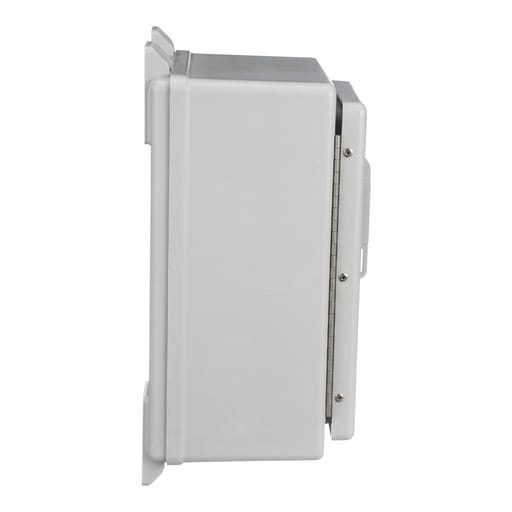

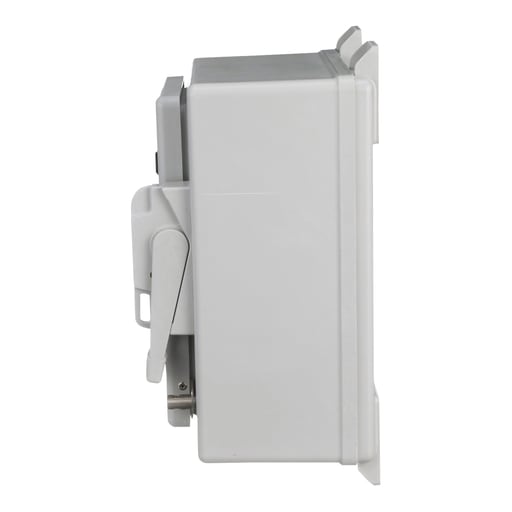

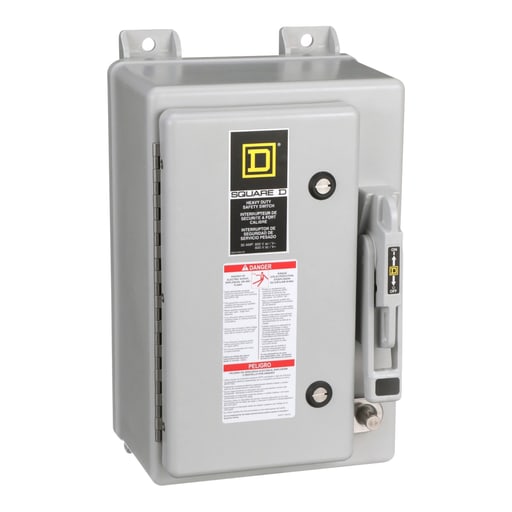

Square-D / Schneider - Square D HU361DF 480/600 VAC 30 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901627890

  • Amperage - 30 Amp

  • Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.

  • Catalog Number - HU361-DF

  • Conductor Size - 12-6 AWG (AL)/14-6 AWG (CU)

Packaging

  • 1 ea

EAN

00785901627890

Part #

252135

Catalog #

HU361DF

Commercial reference

HU361DF

12-Digit UPC:

785901627890

Amperage:

30 Amp

Applications:

HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.

Catalog Number:

HU361-DF

Conductor Size:

12-6 AWG (AL)/14-6 AWG (CU)

Country of Origin:

Mexico

Current:

30 Amp

Depths:

8.8 Inch

ERP_productname:

SQD HU361DF SAFETY SWITCH, HEAVY DUTY, NON FUSIBLE, 30A, 3 POLES, 30 HP, 600 VAC/DC, NEMA 4X, FIBERGLASS REINFORCED POLYESTER

Enclosure:

4X

Enclosure Material:

Stainless Steel

Enclosure Rating:

4X

Family Brand Name:

Square D

Heights:

16-1/2 Inch

Mounting Type:

Surface

NEMA Size:

4X

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Short Circuit Current:

200 kA

Size:

8.8 in

Tc Connection:

Lugs

Type:

Non-fusible disconnect;Single Throw Safety Switch

Voltage:

600 Volt

Widths:

11 in

Wire Size:

AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper

SoneparProductId:

SKU_US_26317953

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 30A and has a NEMA 4X degree of protection. This non-fusible disconnect has a short circuit rating of 200kA@600VAC. This safety switch has a fiberglass reinforced polyester enclosure and is surface mounted. This product os compatable with H or K, R, J or L fuses. The acceptable AWG gauge for this product is AWG 12 / AWG 6, aluminiumand has a tightening torque of 45-45 lbf.in. This product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 16.5 in (H), 11 in (W), 8.8 in (D). Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9999TC10; 9999TC20; SN03
