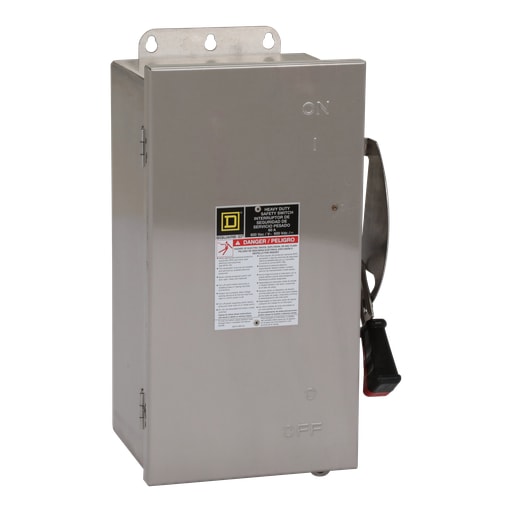

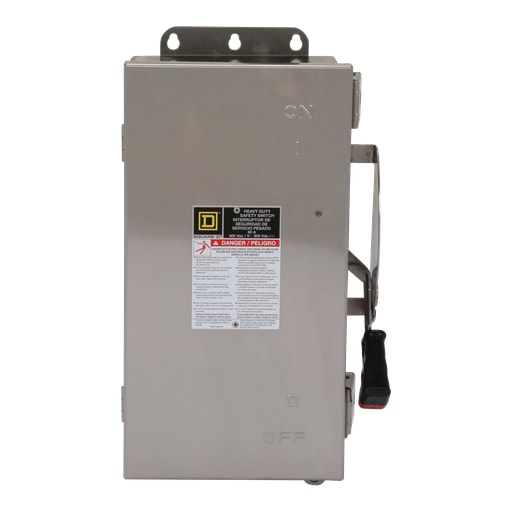

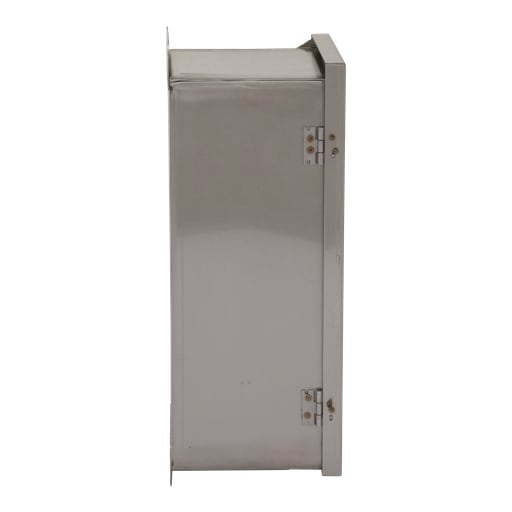

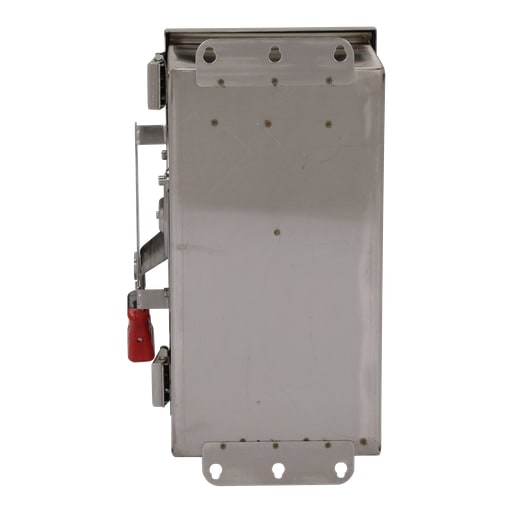

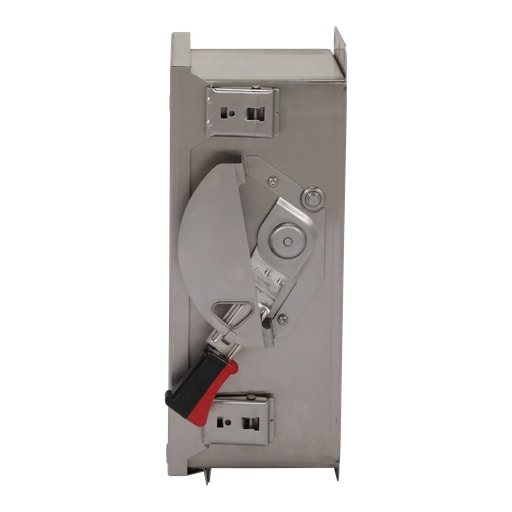

Square-D / Schneider - Square D HU362DSEI 600 VAC 60 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901156581
Amperage - 60 Amp
Applications - HEAVY DUTY
Catalog Number - HU362DSEI
Conductor Size - 12-3 AWG (AL)/14-3 AWG (CU)
Packaging
1 ea
EAN
00785901156581
Part #
178683
Catalog #
HU362DSEI
Commercial reference
HU362DSEI
12-Digit UPC:
785901156581
Amperage:
60 Amp
Applications:
HEAVY DUTY
Catalog Number:
HU362DSEI
Conductor Size:
12-3 AWG (AL)/14-3 AWG (CU)
Country of Origin:
USA
Current:
60 Amp
Depths:
6.97 Inch
Disconnect Type:
Non-fusible disconnect
ERP_productname:
SQD HU362DSEI SWITCH NONFUSIBLE HD 60A 3P STAINLESS
Enclosure:
4,4X,5
Enclosure Material:
Stainless Steel
Enclosure Rating:
4, 4X, 5
Family Brand Name:
Square D
Heights:
16.87 Inch
Material:
Stainless Steel
Mounting Type:
Surface
NEMA Size:
4,4X,5
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Size:
10.81 IN,16.87 IN,6.97 IN
Tc Connection:
LUGS
Type:
SINGLE THROW SAFETY SWITCH,NON-FUSIBLE DISCONNECT
Voltage:
600 Volt
Widths:
10.81 in
Wire Size:
AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium
SoneparProductId:
SKU_US_26374717
