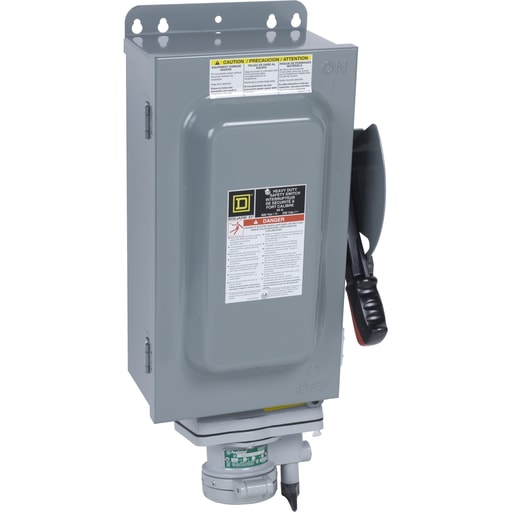

Square-D / Schneider - Square D HU362WA 600 VAC 60 Amp 3-Pole Class H/J/K/R Non-Fusible Heavy Duty Receptacle Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901775256
Amperage - 60 Amp
Applications - 50 HP 480 V AC-60 HP 600 V AC,PLUG ACP6034BC APPLETON POWERTITE
Catalog Number - HU362WA
Conductor Size - 12-2 AWG (AL)/14-2 AWG (CU)
Packaging
1 ea
EAN
00785901775256
Part #
156067
Catalog #
HU362WA
Commercial reference
HU362WA
12-Digit UPC:
785901775256
Amperage:
60 Amp
Applications:
50 HP 480 V AC-60 HP 600 V AC,PLUG ACP6034BC APPLETON POWERTITE
Catalog Number:
HU362WA
Conductor Size:
12-2 AWG (AL)/14-2 AWG (CU)
Country of Origin:
USA
Current:
60 Amp
Depths:
6.81 Inch
ERP_productname:
SQD HU362WA SW UNFUSED HD 60A NEMA1/APPLETON RECEP
Enclosure:
1
Enclosure Material:
Stainless Steel
Enclosure Rating:
1
Family Brand Name:
Square D
Heights:
18.9 Inch
Material:
Steel
Mounting Type:
Surface
NEMA Size:
1
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Size:
6.81 in
Tc Connection:
Receptacle
Type:
Non-fusible disconnect switch;Receptacle Switch
Voltage:
250 Volt
Widths:
10.5 in
Wire Size:
AWG 12...AWG 2 aluminium;AWG 14...AWG 2 copper
SoneparProductId:
SKU_US_26291434
