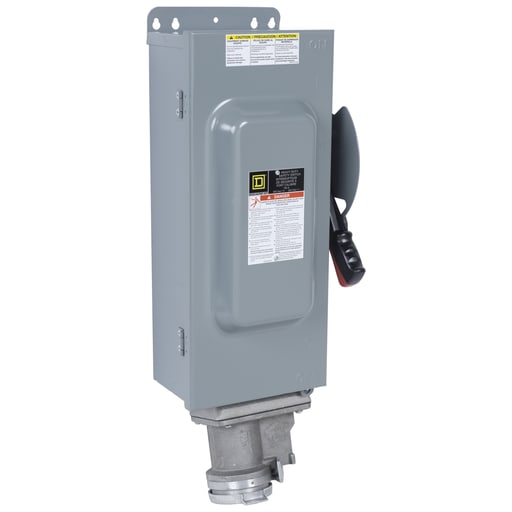

Square-D / Schneider - Square D HU363AWA 600 VAC 100 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901666301
Amperage - 100 Amp
Applications - 75 HP 480 V AC-100 HP 600 V AC,PLUG ACP1034CD APPLETON POWERTITE
Catalog Number - HU363AWA
Conductor Size - 12-1/0 AWG (AL)/14-1/0 AWG (CU)
Packaging
1 ea
EAN
00785901666301
Part #
225352
Catalog #
HU363AWA
Commercial reference
HU363AWA
12-Digit UPC:
785901666301
Amperage:
100 Amp
Applications:
75 HP 480 V AC-100 HP 600 V AC,PLUG ACP1034CD APPLETON POWERTITE
Catalog Number:
HU363AWA
Conductor Size:
12-1/0 AWG (AL)/14-1/0 AWG (CU)
Country of Origin:
USA
Current:
100 Amp
Depths:
7 Inch
Disconnect Type:
Non-fusible disconnect switch
ERP_productname:
SQD HU363AWA SW NOT FUSIBLE HD 100A 3P/APPLETON RECEP
Enclosure:
12,3R
Enclosure Material:
Stainless Steel
Enclosure Rating:
3R, 12
Family Brand Name:
Square D
Heights:
20-1/2 Inch
Material:
Steel
Mounting Type:
Surface
NEMA Size:
12,3R
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Size:
10.5 IN,20.5 IN,7 IN
Tc Connection:
RECEPTACLE
Type:
RECEPTACLE SWITCH,NON-FUSIBLE DISCONNECT SWITCH
Voltage:
250 Volt
Widths:
10.5 in
Wire Size:
AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
SoneparProductId:
SKU_US_26852962
