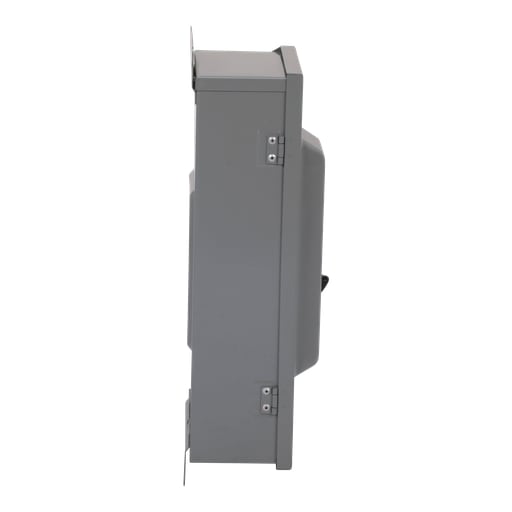

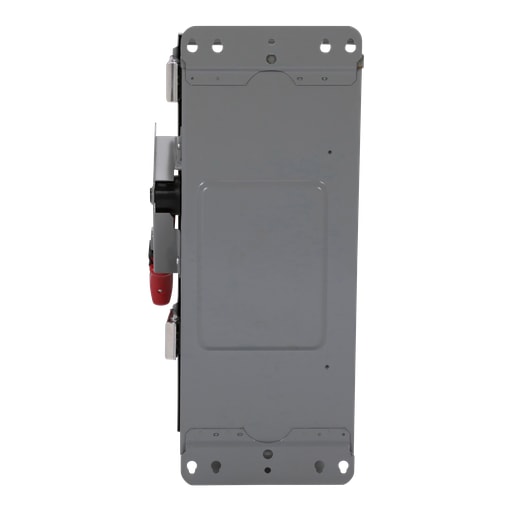

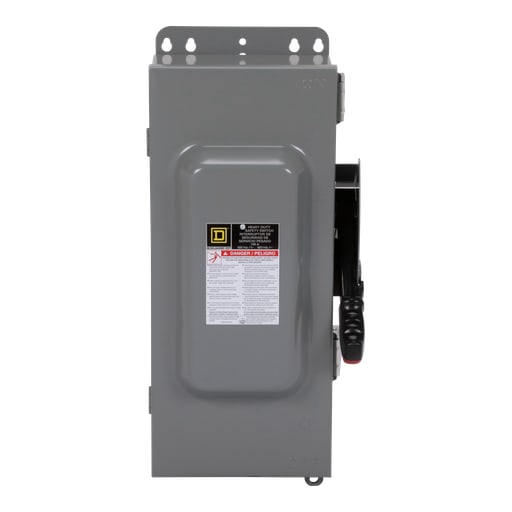

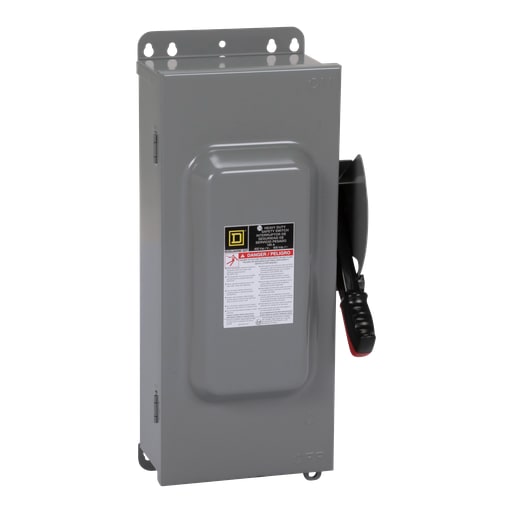

Square-D / Schneider - Square D HU363AWKEI 600 VAC 100 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

Essential specifications

12-Digit UPC - 785901078005
Amperage - 100 Amp
Applications - HEAVY DUTY
Catalog Number - HU363AWKEI
Conductor Size - 12-1/0 AWG (AL)/14-1/0 AWG (CU)

Packaging

1 ea

EAN

00785901078005

Part #

220472

Catalog #

HU363AWKEI

Commercial reference

HU363AWKEI

12-Digit UPC:

785901078005

Amperage:

100 Amp

Applications:

HEAVY DUTY

Catalog Number:

HU363AWKEI

Conductor Size:

12-1/0 AWG (AL)/14-1/0 AWG (CU)

Country of Origin:

USA

Current:

100 Amp

Depths:

7 Inch

Disconnect Type:

Non-fusible disconnect NULL

ERP_productname:

SQD HU363AWKEI SWITCH UNFUSED HD 100A 3P /INTERLOCK

Enclosure:

12,3R

Enclosure Material:

Stainless Steel

Enclosure Rating:

3R, 12

Family Brand Name:

Square D

Heights:

20-1/2 Inch

Material:

Steel

Mounting Type:

Surface

NEMA Size:

12,3R

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

10.5 IN,20.5 IN,7 IN

Tc Connection:

LUGS

Type:

SINGLE THROW SAFETY SWITCH,NON-FUSIBLE DISCONNECT

Voltage:

600 Volt

Widths:

10.5 in

Wire Size:

AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper

SoneparProductId:

SKU_US_26619246

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.
