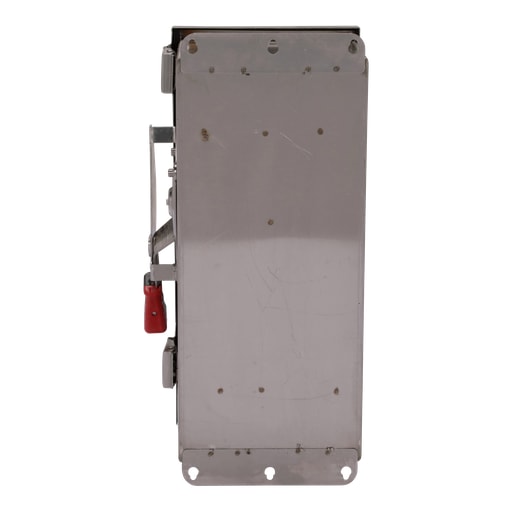

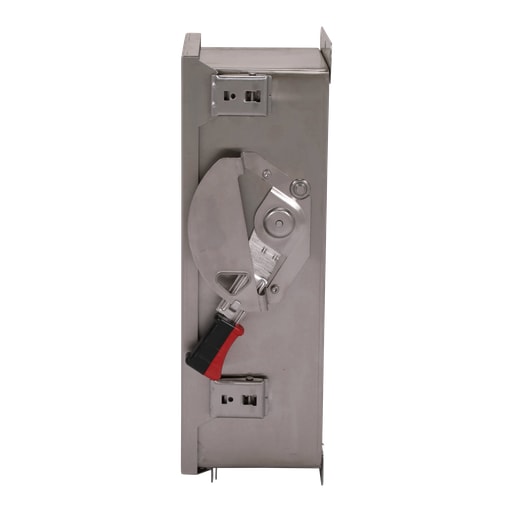

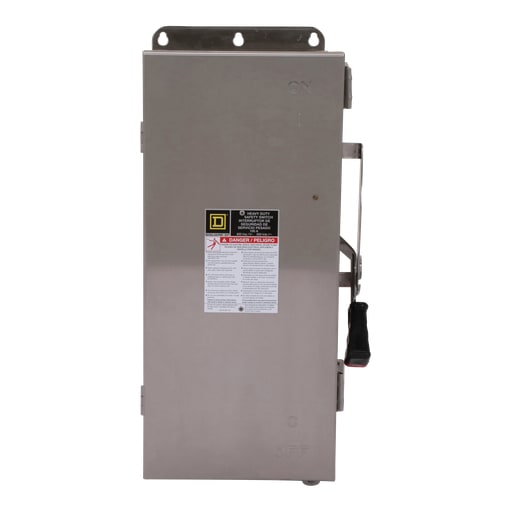

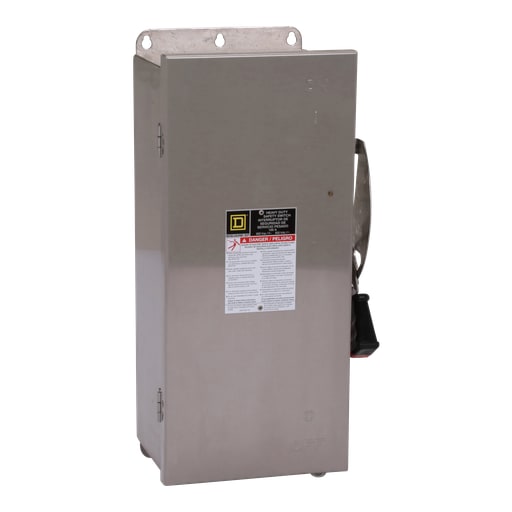

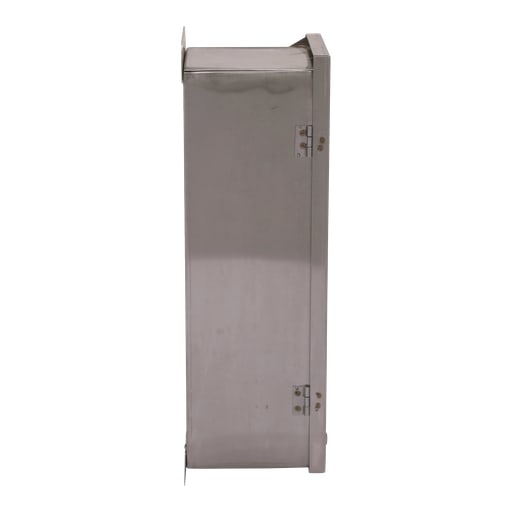

Square-D / Schneider - Square D HU363DSEI 600 VAC 100 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901078012
Amperage - 100 Amp
Applications - HEAVY DUTY
Catalog Number - HU363DSEI
Conductor Size - 12-1/0 AWG (AL)/14-1/0 AWG (CU)
Packaging
1 ea
EAN
00785901078012
Part #
178688
Catalog #
HU363DSEI
Commercial reference
HU363DSEI
12-Digit UPC:
785901078012
Amperage:
100 Amp
Applications:
HEAVY DUTY
Catalog Number:
HU363DSEI
Conductor Size:
12-1/0 AWG (AL)/14-1/0 AWG (CU)
Country of Origin:
USA
Current:
100 Amp
Depths:
6.97 Inch
ERP_productname:
SQD HU363DSEI SW UNFUSED HD 100A STAINLESS/INTERLOCK
Enclosure:
4,4X,5
Enclosure Material:
Stainless Steel
Enclosure Rating:
4, 4X, 5
Family Brand Name:
Square D
Heights:
20.82 Inch
Material:
Stainless Steel
Mounting Type:
Surface
NEMA Size:
4,4X,5
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Size:
6.97 in
Tc Connection:
LUGS
Type:
Non-fusible disconnect;Single Throw Safety Switch
Voltage:
600 Volt
Widths:
11.25 in
Wire Size:
AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
SoneparProductId:
SKU_US_26438118
