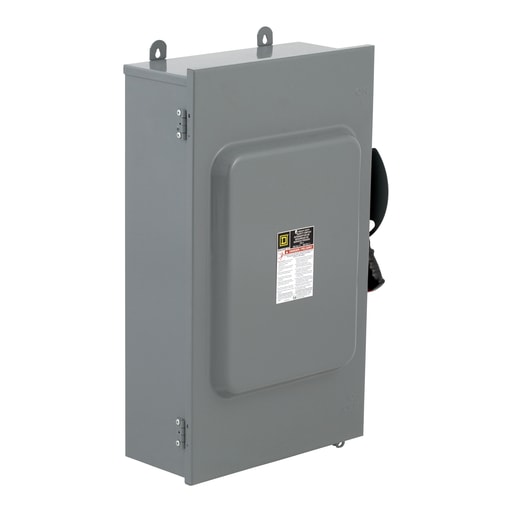

Square-D / Schneider - Square D HU364A 600 VAC 200 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901505761
Amperage - 200 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - HU364A
Conductor Size - 6 AWG-250 kcmil
Packaging
1 ea
EAN
00785901505761
Part #
103871
Catalog #
HU364A
Commercial reference
HU364A
12-Digit UPC:
785901505761
Amperage:
200 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
HU364A
Conductor Size:
6 AWG-250 kcmil
Country of Origin:
USA
Current:
200 Amp
Depths:
8-3/4 Inch
Disconnect Type:
Non-fusible disconnect NULL
ERP_productname:
SQD HU364A SWITCH NONFUSIBLE HD 600V 200A 3P
Enclosure:
12K
Enclosure Material:
Stainless Steel
Enclosure Rating:
12K
Family Brand Name:
Square D
Heights:
29 Inch
Mounting Type:
Surface
NEMA Size:
12K
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Short Circuit Current:
200 kA
Size:
18.63 IN,29 IN,8.75 IN
Tc Connection:
LUGS
Type:
SAFETY SWITCH
Voltage:
600 Volt
Widths:
18.63 in
Wire Size:
AWG 6...250 kcmil copper or aluminium
SoneparProductId:
SKU_US_26677524
