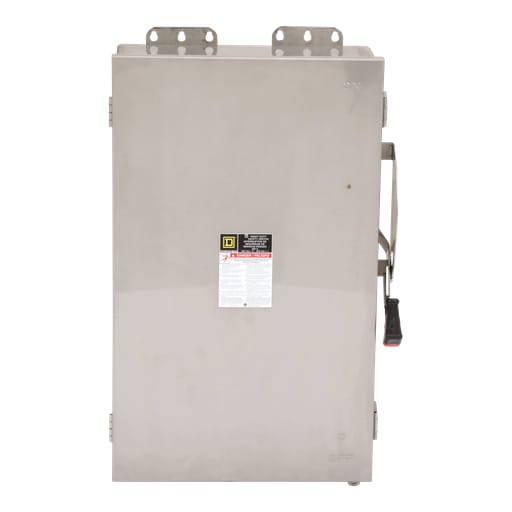

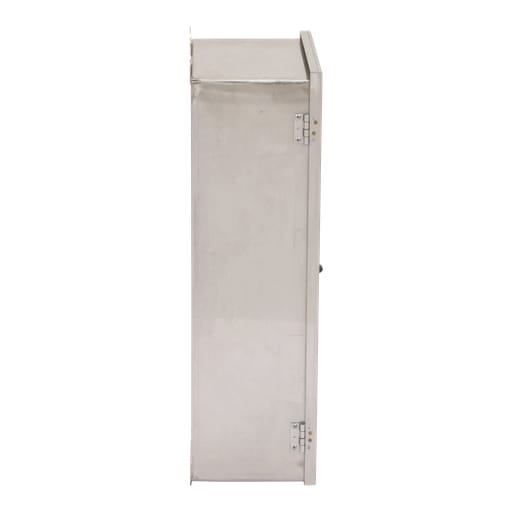

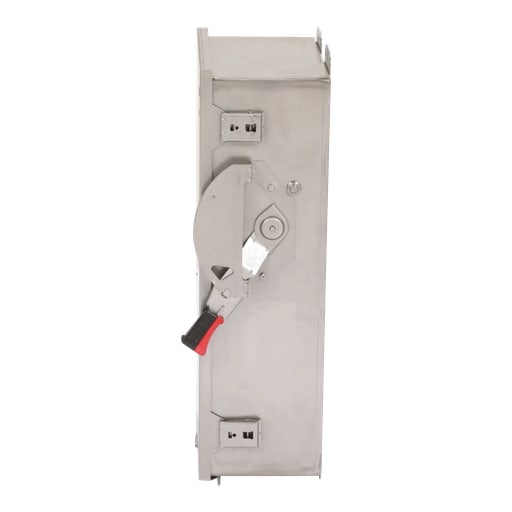

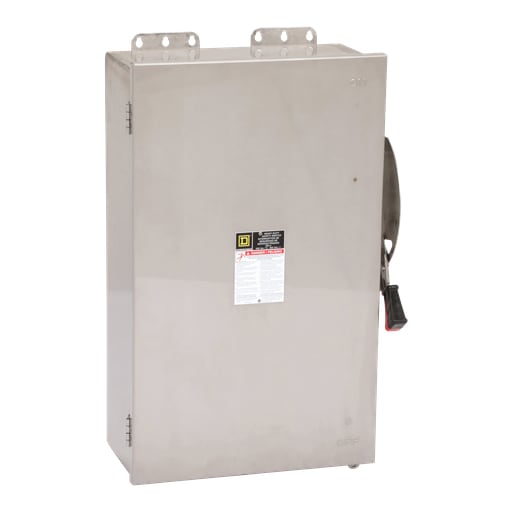

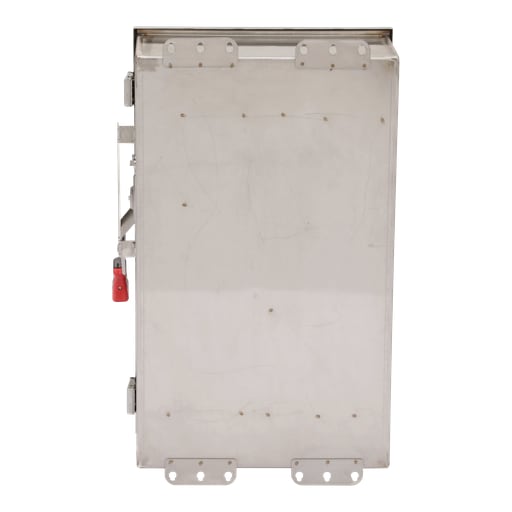

Square-D / Schneider - Square D HU364SS 600 VAC 200 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901413134
Amperage - 200 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - HU364SS
Conductor Size - 6 AWG-250 kcmil
Packaging
1 ea
EAN
00785901413134
Part #
142809
Catalog #
HU364SS
Commercial reference
HU364SS
12-Digit UPC:
785901413134
Amperage:
200 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
HU364SS
Conductor Size:
6 AWG-250 kcmil
Country of Origin:
USA
Current:
200 Amp
Depths:
8.88 Inch
ERP_productname:
SQD HU364SS SWITCH UNFUSED HD 200A NEMA 44X5 316 SS
Enclosure:
4,4X,5
Enclosure Material:
Stainless Steel
Enclosure Rating:
4, 4X, 5
Family Brand Name:
Square D
Heights:
29 Inch
Mounting Type:
Surface
NEMA Size:
4,4X,5
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Short Circuit Current:
200 kA
Size:
8.88 in
Tc Connection:
Lugs
Type:
Non-fusible disconnect;Single Throw Safety Switch
Voltage:
600 Volt
Widths:
19.25 in
Wire Size:
AWG 6...250 kcmil copper or aluminium
