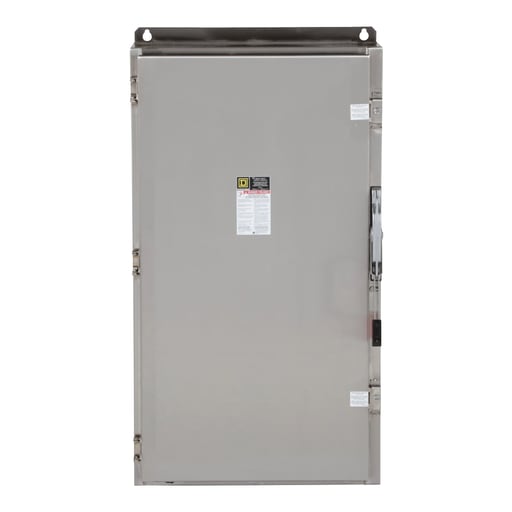

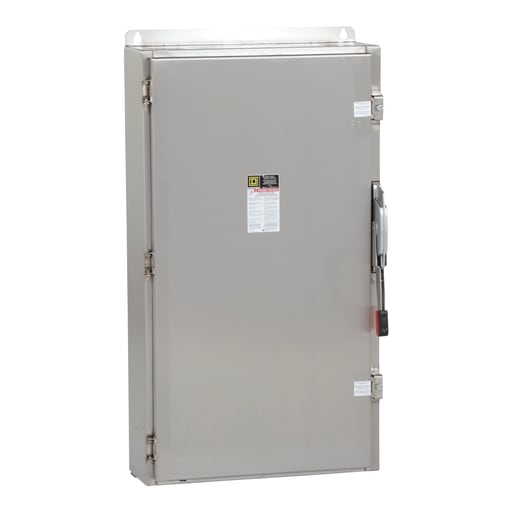

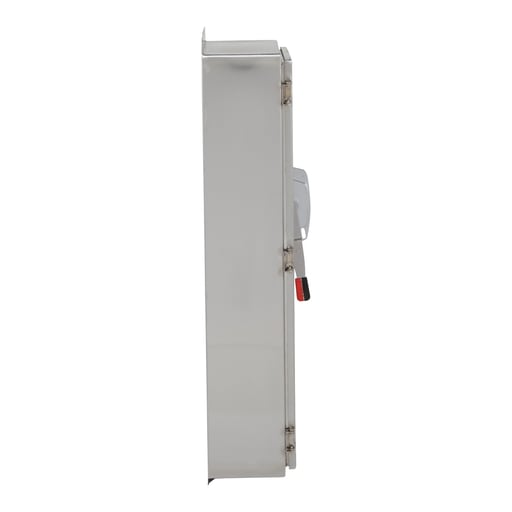

Square-D / Schneider - Square D HU365DS 600 VAC 400 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901195979

  • Amperage - 400 Amp

  • Applications - HEAVY DUTY

  • Catalog Number - HU365DS

  • Conductor Size - 1/0 AWG-750 kcmil

Packaging

  • 1 ea

EAN

00785901195979

Part #

121580

Catalog #

HU365DS

Commercial reference

HU365DS

12-Digit UPC:

785901195979

Amperage:

400 Amp

Applications:

HEAVY DUTY

Catalog Number:

HU365DS

Conductor Size:

1/0 AWG-750 kcmil

Country of Origin:

Mexico

Current:

400 Amp

Depths:

10.13 Inch

Disconnect Type:

Non-fusible disconnect

ERP_productname:

SQD HU365DS 400A-600V-3P SW

Enclosure:

4,4X,5

Enclosure Material:

Stainless Steel

Enclosure Rating:

4, 4X, 5

Family Brand Name:

Square D

Heights:

46-1/4 Inch

Material:

Stainless Steel

Mounting Type:

Surface

NEMA Size:

4,4X,5

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Short Circuit Current:

200 kA

Size:

10.13 IN,26.25 IN,46.25 IN

Tc Connection:

LUGS

Type:

SINGLE THROW SAFETY SWITCH,NON-FUSIBLE DISCONNECT

Voltage:

600 Volt

Widths:

26.25 in

Wire Size:

AWG 1/0...750 kcmil copper or aluminium

SoneparProductId:

SKU_US_26894888

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: EIK40602
