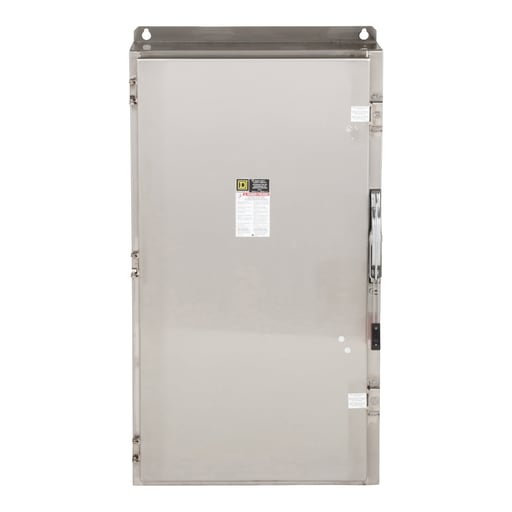

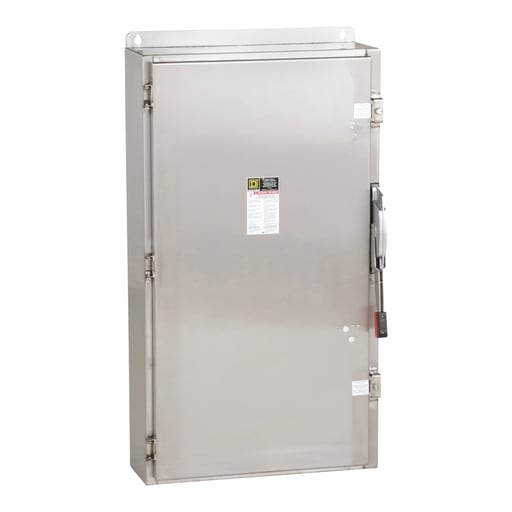

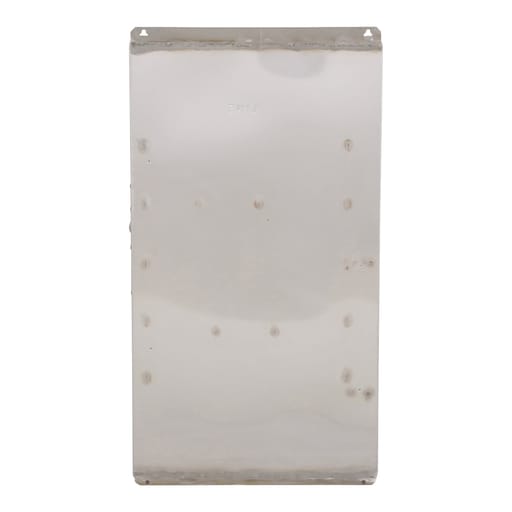

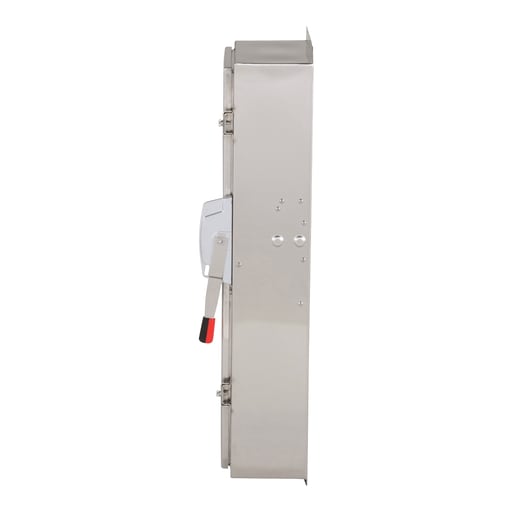

Square-D / Schneider - Square D HU366DS 600 VAC 600 Amp 4-Pole Non-Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901259497
Amperage - 600 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - HU366DS
Conductor Size - 3/0 AWG-500 kcmil
Packaging
1 ea
EAN
00785901259497
Part #
220519
Catalog #
HU366DS
Commercial reference
HU366DS
12-Digit UPC:
785901259497
Amperage:
600 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
HU366DS
Conductor Size:
3/0 AWG-500 kcmil
Country of Origin:
USA
Current:
600 Amp
Depths:
10.13 Inch
ERP_productname:
SQD HU366DS SW UNFUSED HD 600A NEMA4 4X 5 STAINLESS
Enclosure:
4,4X,5
Enclosure Material:
Stainless Steel
Enclosure Rating:
4, 4X, 5
Family Brand Name:
Square D
Heights:
46-1/4 Inch
Mounting Type:
Surface
NEMA Size:
4,4X,5
Number of Phases:
3 Phase
Number of Poles:
3 Pole
Short Circuit Current:
200 kA
Size:
10.13 in
Tc Connection:
Lugs
Type:
Non-fusible disconnect;Single Throw Safety Switch
Voltage:
600 Volt
Widths:
26.25 in
Wire Size:
AWG 3/0...500 kcmil copper or aluminium
SoneparProductId:
SKU_US_26674710
