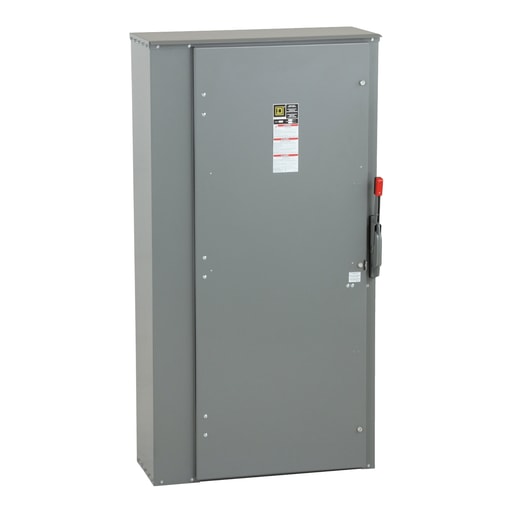

Square-D / Schneider - Square D HU367R 600 VAC 800 Amp 3-Pole Non-Fusible Heavy Duty Safety Switch

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901442448

  • Amperage - 800 Amp

  • Applications - HEAVY DUTY

  • Catalog Number - HU367R

  • Conductor Size - 3/0 AWG-750 kcmil

Packaging

  • 1 ea

EAN

00785901442448

Part #

180545

Catalog #

HU367R

Commercial reference

HU367R

12-Digit UPC:

785901442448

Amperage:

800 Amp

Applications:

HEAVY DUTY

Catalog Number:

HU367R

Conductor Size:

3/0 AWG-750 kcmil

Country of Origin:

Mexico

Current:

800 Amp

Depths:

17-3/4 Inch

Disconnect Type:

Non-fusible disconnect NULL

ERP_productname:

SQD HU367R 3P 600V 800A SFTY SW

Enclosure:

3R

Enclosure Material:

Steel

Family Brand Name:

Square D

Heights:

69.13 Inch

Material:

Steel

Mounting Type:

Surface

NEMA Size:

3R

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Short Circuit Current:

200 kA

Size:

17.75 IN,36.62 IN,69.13 IN

Tc Connection:

LUGS

Type:

SINGLE THROW SAFETY SWITCH,NON-FUSIBLE DISCONNECT

Voltage:

600 Volt

Widths:

36.62 in

SoneparProductId:

SKU_US_25749370

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: EIK40601; EIK40602; H800SNE4; SS80120LI; PKOGTA7; H8LKE2
