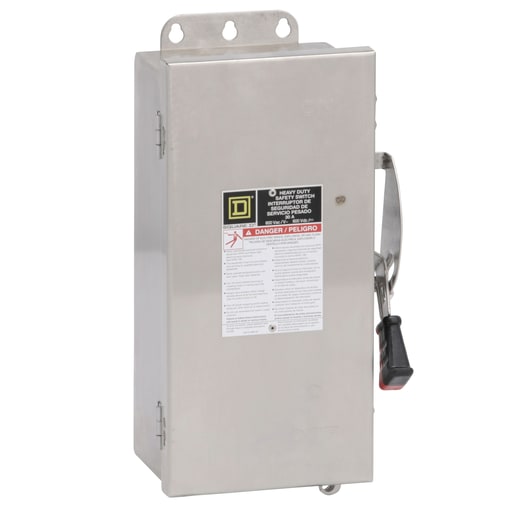

Square-D / Schneider - Square D HU462DS 600 VAC 60 Amp 4-Pole Non-Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901507833
Amperage - 60 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - HU462DS
Conductor Size - 12-3 AWG (AL)/14-3 AWG (CU)
Packaging
1 ea
EAN
00785901507833
Part #
126806
Catalog #
HU462DS
Commercial reference
HU462DS
12-Digit UPC:
785901507833
Amperage:
60 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
HU462DS
Conductor Size:
12-3 AWG (AL)/14-3 AWG (CU)
Country of Origin:
USA
Current:
60 Amp
Depths:
6.97 Inch
ERP_productname:
SQD HU462DS SW NOT FUSIBLE HD 600V 60A 4P NEMA4 4X 5
Enclosure:
4,4X,5
Enclosure Material:
Stainless Steel
Family Brand Name:
Square D
Heights:
20.82 Inch
Mounting Type:
Surface
NEMA Size:
4,4X,5
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Short Circuit Current:
200 kA
Size:
6.97 in
Tc Connection:
Lugs
Type:
Non-fusible disconnect;Single Throw Safety Switch
Voltage:
600 Volt
Widths:
16.85 in
