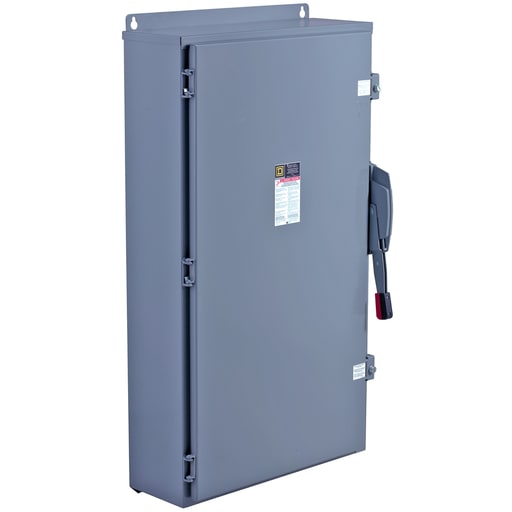

Square-D / Schneider - Square D HU465AWK 600 VAC 400 Amp 4-Pole Non-Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901259503
Amperage - 400 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - HU465AWK
Conductor Size - 1/0 AWG-750 kcmil
Packaging
1 ea
EAN
00785901259503
Part #
174390
Catalog #
HU465AWK
Commercial reference
HU465AWK
12-Digit UPC:
785901259503
Amperage:
400 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
HU465AWK
Conductor Size:
1/0 AWG-750 kcmil
Country of Origin:
Mexico
Current:
400 Amp
Depths:
10.13 Inch
ERP_productname:
SQD HU465AWK SW NOT FUSIBLE HD 600V 400A 4P NEMA12
Enclosure:
12,3R
Enclosure Material:
Stainless Steel
Enclosure Rating:
3R, 12
Family Brand Name:
Square D
Heights:
46-1/4 Inch
Mounting Type:
Surface
NEMA Size:
12,3R
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Short Circuit Current:
200 kA
Size:
10.13 in
Tc Connection:
Lugs
Type:
Non-fusible disconnect;Single Throw Safety Switch
Voltage:
600 Volt
Widths:
32.5 in
Wire Size:
AWG 1/0...750 kcmil copper or aluminium
SoneparProductId:
SKU_US_26896649
