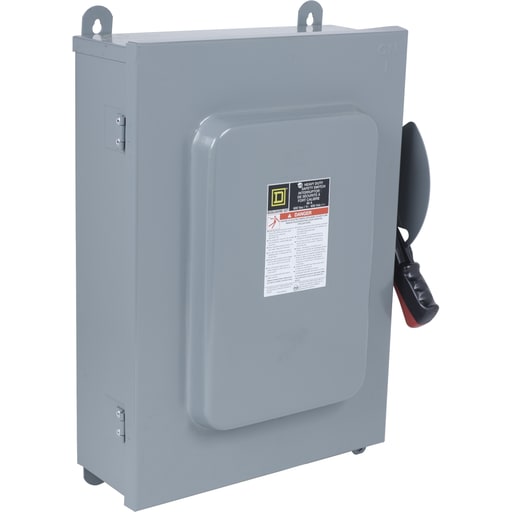

Square-D / Schneider - Square D HU662AWK 600 VAC 60 Amp 6-Pole Non-Fusible Heavy Duty Safety Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901868361
Amperage - 60 Amp
Applications - HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number - HU662AWK
Conductor Size - 12-3 AWG (AL)/14-3 AWG (CU)
Packaging
1 ea
EAN
00785901868361
Part #
183756
Catalog #
HU662AWK
Commercial reference
HU662AWK
12-Digit UPC:
785901868361
Amperage:
60 Amp
Applications:
HEAVY DUTY SAFETY SWITCHES ARE DESIGNED FOR THE FOLLOWING APPLICATIONS UP TO 600VAC OR 600VDC 30-1200 AMPERES, 200,000 RMS SYMMETRICAL AMPERES SHORT CIRCUIT CURRENT.
Catalog Number:
HU662AWK
Conductor Size:
12-3 AWG (AL)/14-3 AWG (CU)
Country of Origin:
USA
Current:
60 Amp
Depths:
6.8 Inch
ERP_productname:
SQD HU662AWK SWITCH NOT FUSIBLE HD 600V 60A 6P NEMA12
Enclosure:
12,3R
Enclosure Material:
Stainless Steel
Enclosure Rating:
3R, 12
Family Brand Name:
Square D
Heights:
20-1/2 Inch
Mounting Type:
Surface
NEMA Size:
12,3R
Number of Phases:
3 Phase
Number of Poles:
6 Pole
Short Circuit Current:
200 kA
Size:
6.8 in
Tc Connection:
Lugs
Type:
Non-fusible disconnect;Single Throw Safety Switch
Voltage:
600 Volt
Widths:
16.13 in
Wire Size:
AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium
SoneparProductId:
SKU_US_26342839
