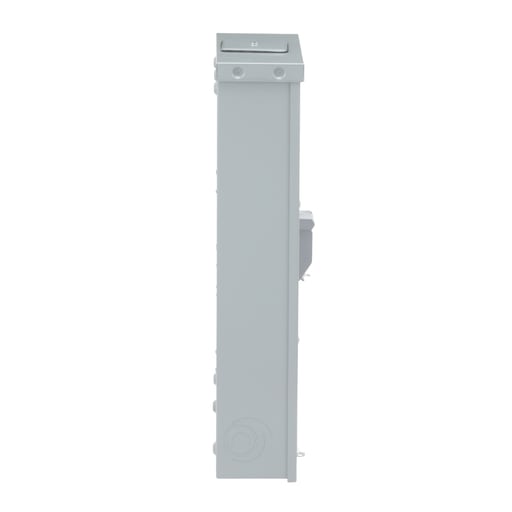

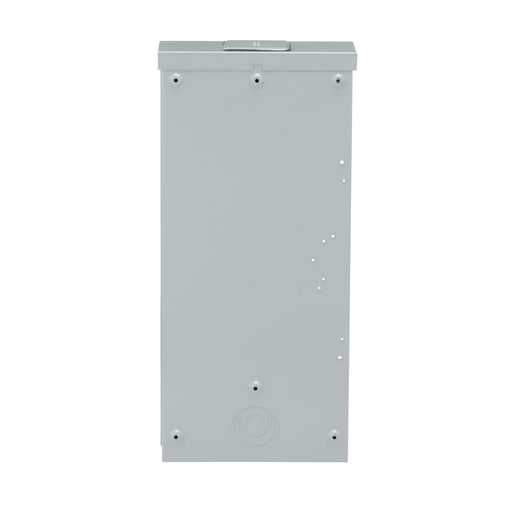

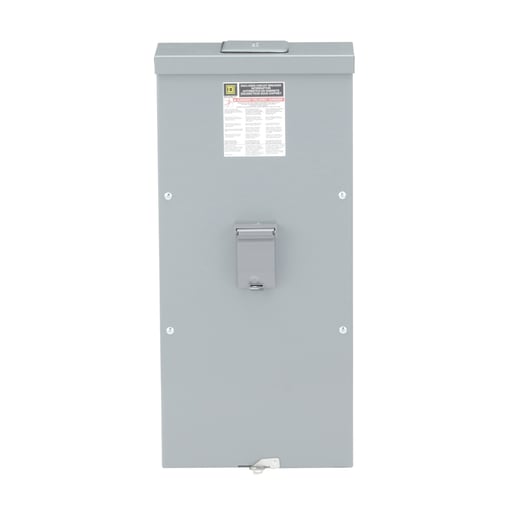

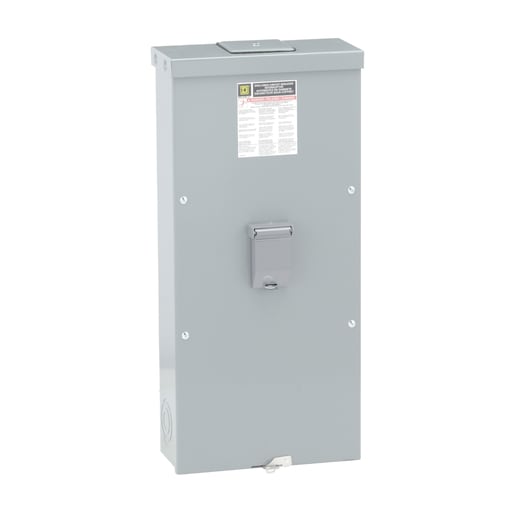

Square-D / Schneider - Square D J250R 14.47 x 6.28 x 31.05 Inch NEMA 3R Circuit Breaker Enclosure
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901607861
Amperage - 15250 Amp
Applications - CIRCUIT BREAKER H-FRAME 15-250 A-CIRCUIT BREAKER J-FRAME 15-250 A
Catalog Number - J250R
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901607861
Part #
139263
Catalog #
J250R
Commercial reference
J250R
12-Digit UPC:
785901607861
Amperage:
15250 Amp
Applications:
CIRCUIT BREAKER H-FRAME 15-250 A-CIRCUIT BREAKER J-FRAME 15-250 A
Catalog Number:
J250R
Country of Origin:
Mexico
Depths:
6.28 Inch
ERP_productname:
SQD J250R ENCLOSURE F/CKT BRKR
Enclosure:
NEMA 3R
Family Brand Name:
Square D
Frame:
H OR J FRAME
Heights:
31.05 Inch
Type:
ENCLOSURE
Widths:
14.47 in
SoneparProductId:
SKU_US_25722234
This PowerPacT circuit breaker enclosure is designed for H-Frame and J-Frame 15A to 250A circuit breakers. PowerPact H and J circuit breaker enclosures accept 80% or 100% rated circuit breakers. Wiring sizing requirements apply when using 100% rated circuit breakers. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The enclosures are not compatible with earth leakage or ground fault modules. This enclosure is a NEMA 3R surface mount of gray baked enamel with a blank endwall. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: A400L; PKOGTH150; SN100FA; SN400LA; HJL26015; HJL26100; HJL36015; HJL36100
