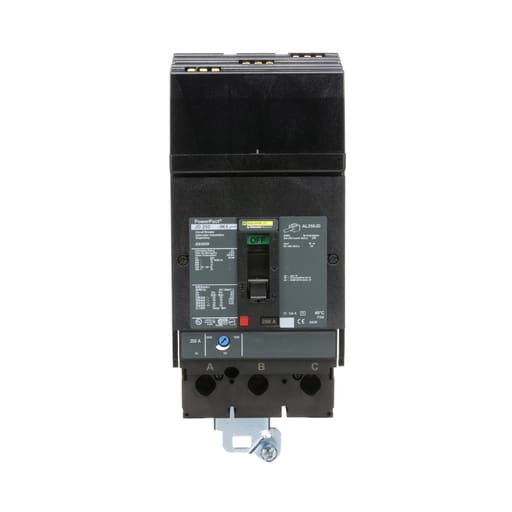

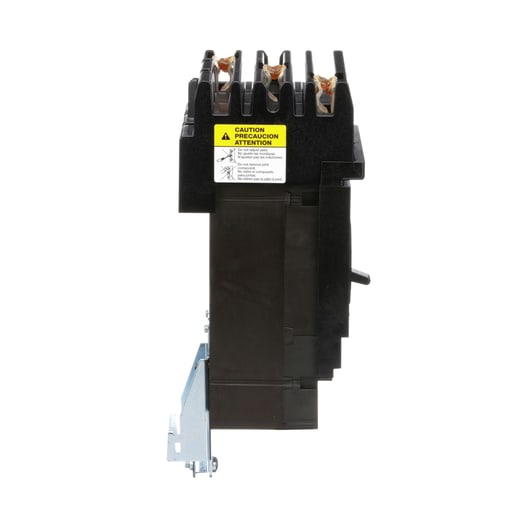

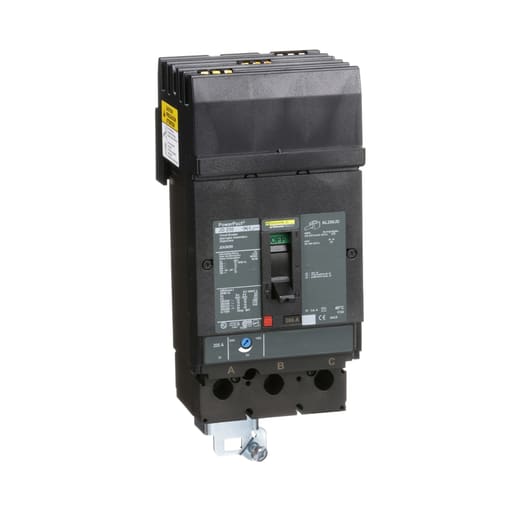

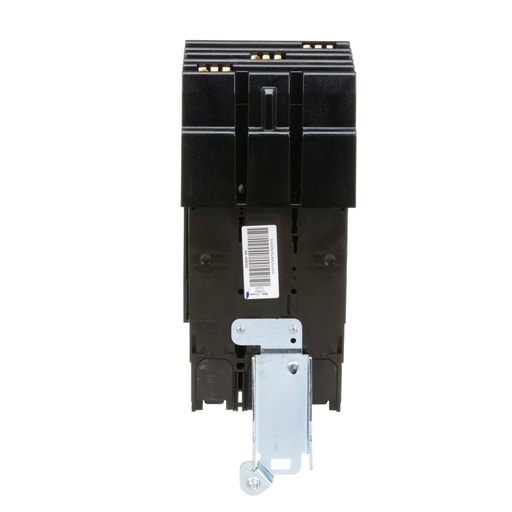

Square-D / Schneider - Square D JDA36200 600 Volt 200 Amp Molded Case Circuit Breaker

The PowerPact™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104.F (40.C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact J, circuit breaker and is 3-pole and has a breaking capacity of 14kA@600VAC and has a rated current of 200A. This is a I-Line breaker and complies to UL listed, IEC, CSA, UL listed & CCC standards. With a magnetic hold current of 1000A and a magnetic tripping current of 2000-2000A. Dimensions for this product are 11.48 in (H),4.48 in (W), 5.87 in (D) with an ambient temperature rating of 40 .C. This product comes with an 18 month warranty. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: VTRIPHJ; ELM250JD; GFM250JD; HCP145012N; HCP18686M; HCP326812N; HCP32684; HCP36866M; HCP508612N; HCP50864; HCP50866; HCP50868; HCP54868SU; S29450; VTRIPHJ05; VTRIPHJ10; S29386; S29390; S29329; S37424; S37448; CU250JD; PDC3JD20; PDC6JD4; S29370; S29338; S29337
