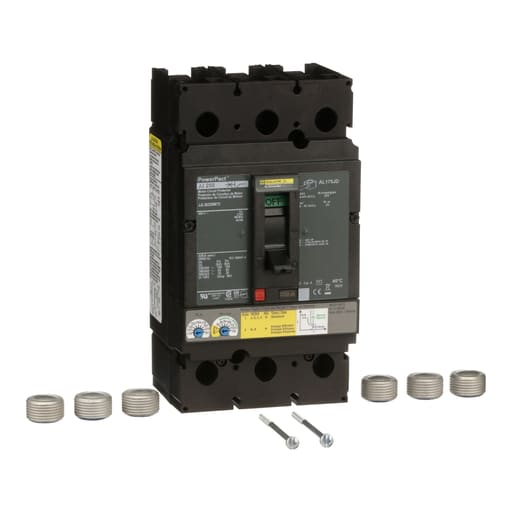

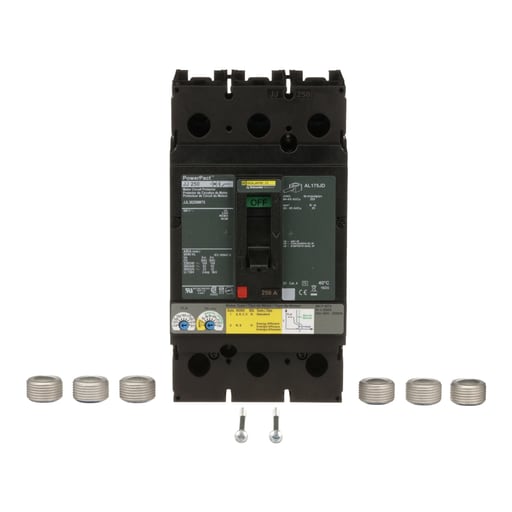

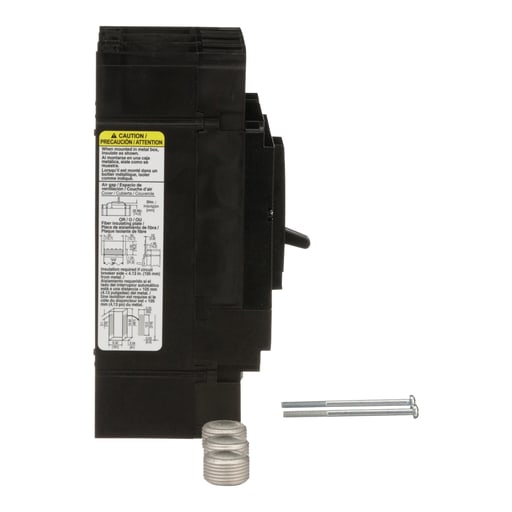

Square-D / Schneider - Square D JJL36250M75 600 Volt 250 Amp Motor Circuit Protector

PowerPacT J-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the PowerPacT J circuit breakers. This unit has lugs on both the line and load side. This PowerPacT J, 250A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. The breaker has a continuous current rating of 80%. PowerPacT J motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: JDTC; S29450; S29386; S29451; S29390; S29452; S37424; S37448; PDC3JD20; S29370; PDC6JD4; S37428; H2PHLA; S29369; S29354; S29315; S29338; S29329; S29337; AL175JD; CU250JD; YA150JD
