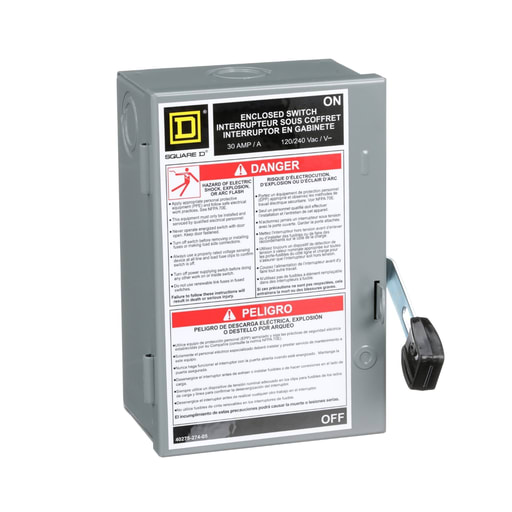

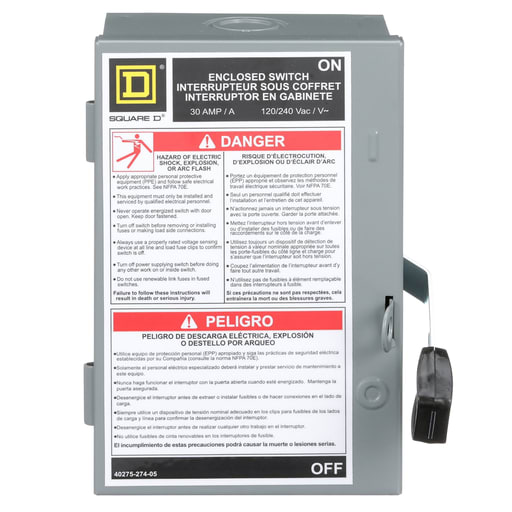

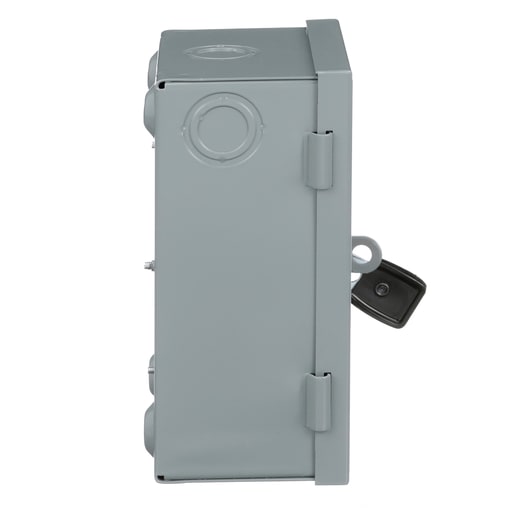

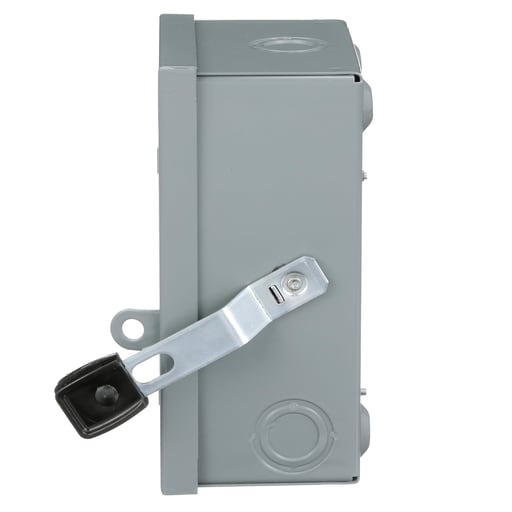

Square-D / Schneider - Square D L211N 120/240 Volt 30 Amp 2-Pole 3-Wire NEMA 1 Light Duty Safety Switch

12-Digit UPC:

785901090526

Amperage:

30 Amp

Applications:

LIGHT DUTY FOR HOME APPLICATIONS IN DISCONNECTING POWER TO WORKSHOPS, HOBBY ROOMS, FURNACES AND GARAGES

Catalog Number:

L211N

Conductor Size:

12-8 AWG (AL)/14-8 AWG (CU)

Country of Origin:

USA

Current:

30 Amp

Depths:

4 Inch

ERP_productname:

SQD L211N SWITCH FUSIBLE LD 120/240V 30A 2P NEMA1

Enclosure:

1

Enclosure Material:

Steel

Enclosure Rating:

1

Family Brand Name:

Square D

Heights:

7.63 Inch

Mounting Type:

Surface

NEMA Size:

1

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Size:

4 in

Sub Brand:

Light duty

Tc Connection:

AWG 14...AWG 8 COPPER-AWG 12...AWG 8 ALUMINIUM

Type:

Fusible disconnect;Single Throw Safety Switch

Voltage:

240 Volt

Wattage:

1 Watt

Widths:

6.13 in

Wire Size:

AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium

SoneparProductId:

SKU_US_25790293
