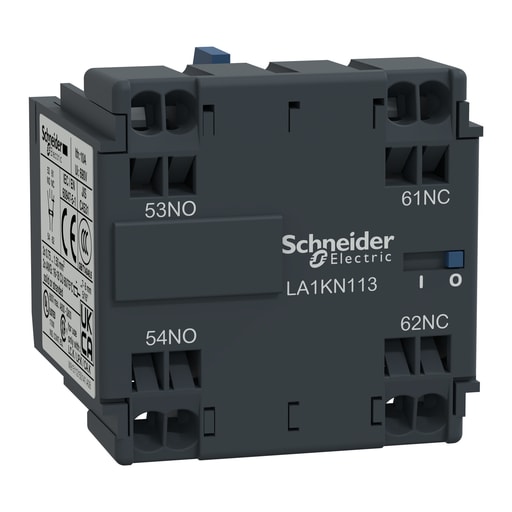

Square-D / Schneider - Square D LA1KN113 600 Volt 10 Amp 1NO 1NC Spring Terminal Auxiliary Contact Block

Essential specifications

12-Digit UPC - 785901630760
Applications - LA1
Catalog Number - LA1KN113
Coil Voltage - <= 690 V AC <= 400 HZ
Country of Origin - France

Packaging

1 ea

EAN

03389110244922

Part #

227911

Catalog #

LA1KN113

Commercial reference

LA1KN113

12-Digit UPC:

785901630760

Applications:

LA1

Catalog Number:

LA1KN113

Coil Voltage:

<= 690 V AC <= 400 HZ

Country of Origin:

France

Depths:

35 mm

ERP_productname:

SQD LA1KN113 CONTACTOR+RELAY ADDER DECK 600VAC 10A

Family Brand Name:

Schneider Electric

Heights:

30 mm

Size:

35 MM

Sub Brand:

TESYS,TESYS K-TESYS K CONTROL RELAY

Tc Connection:

SPRING TERMINALS 1 0.75-1.5 MMA.FLEXIBLE WITHOUT CABLE END- SPRING TERMINALS 1 0.75-1.5 MMA.SOLID

Type:

AUXILIARY CONTACT BLOCK

Voltage:

690 Volt

Widths:

38 mm

SoneparProductId:

SKU_US_26693685

LA1KN113 is a Schneider Electric instantaneous auxiliary contact block for TeSys K contactors. It provides 1NO+1NC contacts rated up to 10A 690V AC, connection by spring terminals. Easy clip-on mounting on front, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC) and Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh). Compatible Products: CA4KN313BW3; LP1K09013BD3; LP5K09013BW3; LP4K09013BW3; CA4KN223BW3; LP1K12103BD3; LP1K09103BD; LP4K09103BW3; LP1K09013BD; LP1K06013BD; LC1K09103B7; LP1K06103BD; LC1K090083E7; CA4KN403BW3 - Cross Sell Products: GV2ME06
