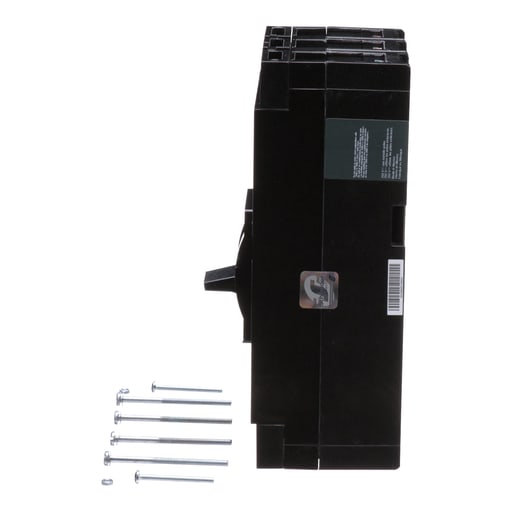

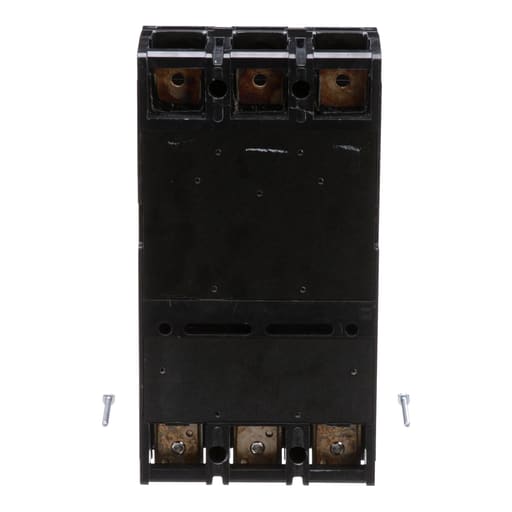

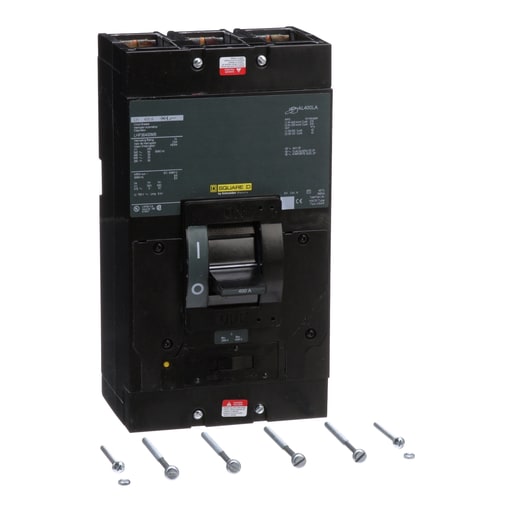

Square-D / Schneider - Square D LA26300AC 600 Volt 300 Amp Molded Case Circuit Breaker

Essential specifications

12-Digit UPC - 785901009771
Amperage - 300 Amp
Applications - I-LINE PANELBOARDS AND SWITCHBOARDS
Catalog Number - LA26300AC
Country of Origin - Mexico

Packaging

1 ea

EAN

00785901009771

Part #

223285

Catalog #

LA26300AC

Commercial reference

LA26300AC

12-Digit UPC:

785901009771

Amperage:

300 Amp

Applications:

I-LINE PANELBOARDS AND SWITCHBOARDS

Catalog Number:

LA26300AC

Country of Origin:

Mexico

Current:

300 Amp

Depths:

5.84 Inch

ERP_productname:

SQD LA26300AC MOLDED CASE CIRCUIT BREAKER 600V 300A

Family Brand Name:

Square D

Frame:

Heights:

11 Inch

Interrupt Rating:

25, 30, 42 kAIC

Length:

5.84 Inch

Mounting Type:

I-Line

Number of Poles:

2 Pole

Tc Connection:

AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-I-LINE CONNECTION LINE

Trip Type:

THERMAL-MAGNETIC

Type:

CIRCUIT BREAKER

Voltage:

125 Volt

Widths:

6 in

SoneparProductId:

SKU_US_26413202

Square D FA/LA Molded Case Circuit Breakers is designed to protect electrical systems from damage caused by overloads. For distribution systems supplied by transformers and distribution systems supplied by engine generator sets. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: AL400LA; LA11021; LA11352; LA11027; LA11037; LA11212; VC400LA35; VC400LA3; VC400LA5; VC400LA7; PDC6LA20; HPALM

Product Spec Sheet

PDF

Product Catalog Page

PDF
