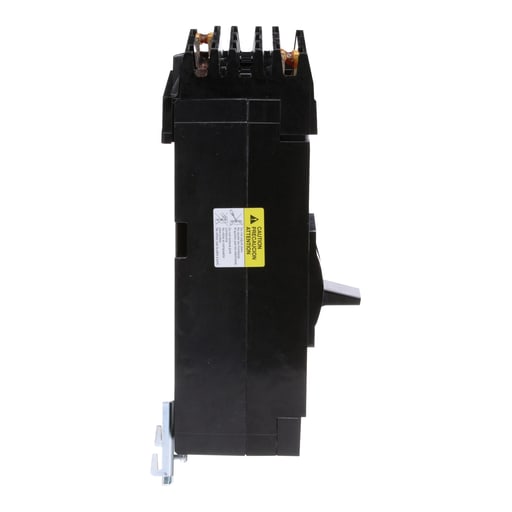

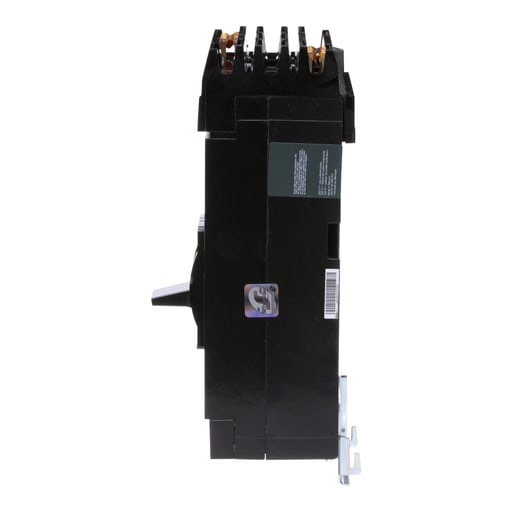

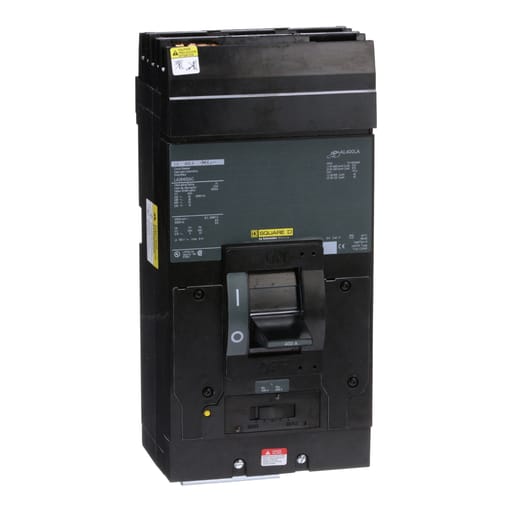

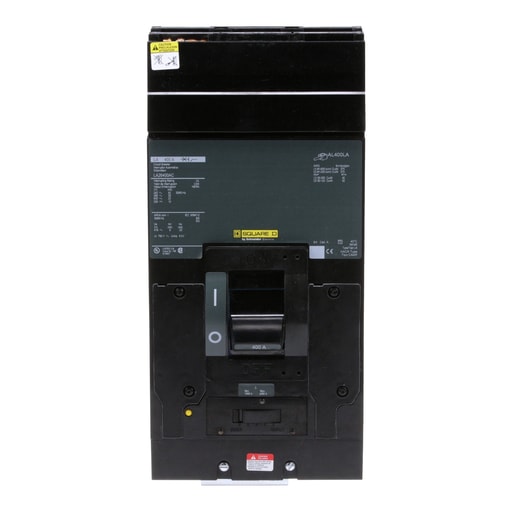

Square-D / Schneider - Square D LA26400AC 2-Pole 400 Amp 600 Volt Thermal Magnetic Molded Case Circuit Breaker

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901009795

  • Amperage - 400 Amp

  • Applications - I-LINE PANELBOARDS AND SWITCHBOARDS

  • Catalog Number - LA26400AC

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785901009795

Part #

204862

Catalog #

LA26400AC

Commercial reference

LA26400AC

12-Digit UPC:

785901009795

Amperage:

400 Amp

Applications:

I-LINE PANELBOARDS AND SWITCHBOARDS

Catalog Number:

LA26400AC

Country of Origin:

Mexico

Current:

400 Amp

Depths:

5.84 Inch

ERP_productname:

SQD LA26400AC 2P-600V-400A CB

Family Brand Name:

Square D

Frame:

L-FRAME

Heights:

11 Inch

Interrupt Rating:

25, 30, 42 kAIC

Length:

5.84 Inch

Mounting Type:

I-Line

Number of Poles:

2 Pole

Tc Connection:

AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-I-LINE CONNECTION LINE

Trip Type:

THERMAL MAGNETIC

Type:

MOLDED CASE CIRCUIT BREAKER

Voltage:

125 Volt

Widths:

6 in

SoneparProductId:

SKU_US_25573012

Square D FA/LA Molded Case Circuit Breakers is designed to protect electrical systems from damage caused by overloads. For distribution systems supplied by transformers and distribution systems supplied by engine generator sets. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: AL400LA; LA11021; LA11352; LA11027; LA11037; LA11212; VC400LA35; VC400LA3; VC400LA5; VC400LA7; PDC6LA20; HPALM
