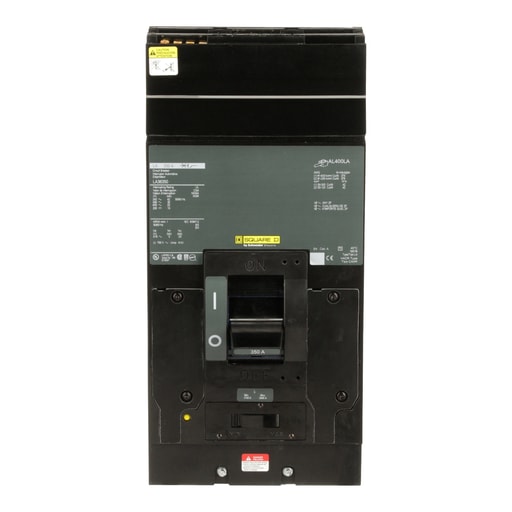

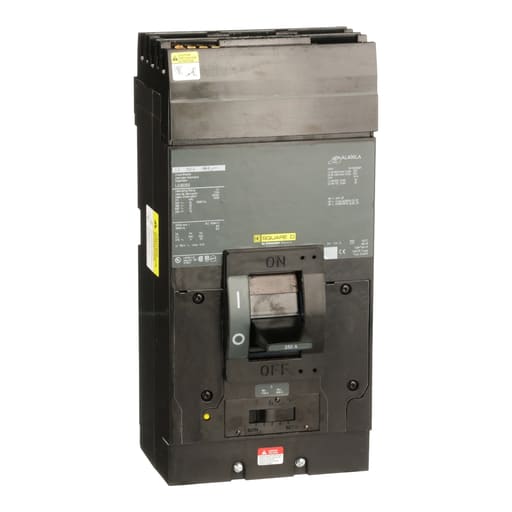

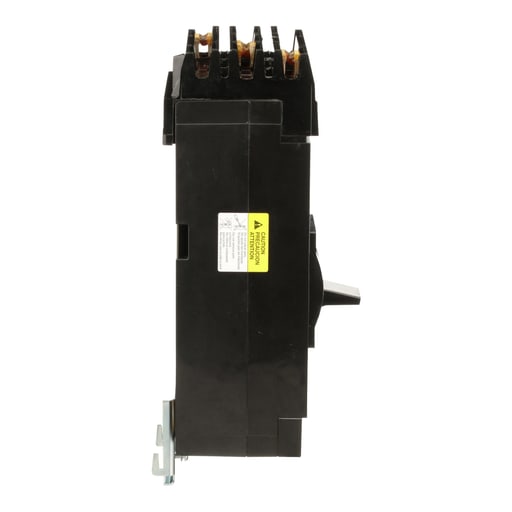

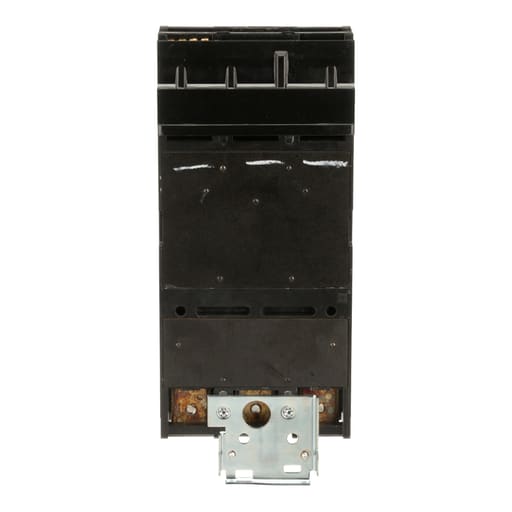

Square-D / Schneider - Square D LA36350 3-Pole 350 Amp 600 Volt Thermal Magnetic Molded Case Circuit Breaker

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400.1200 A main lugs only and 100.1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This I-Line, circuit breaker is a 3P breaker with a rated current of 350A. This product has a breakning capacity of 22kA@600VAC. This breaker has a thermal-magnetic trip unit trechnology. This product complys to UL listed & CSA standards. With a magnetic hold current of 1750A and a magnetic tripping current of 3500A. Dimensions for this product are 11 in (H), 6 in (W), 5.84 in (D). Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: HPALM; AL400LA; AL400LH7; CU400LA; CVC400LA3; PDC6LA20
