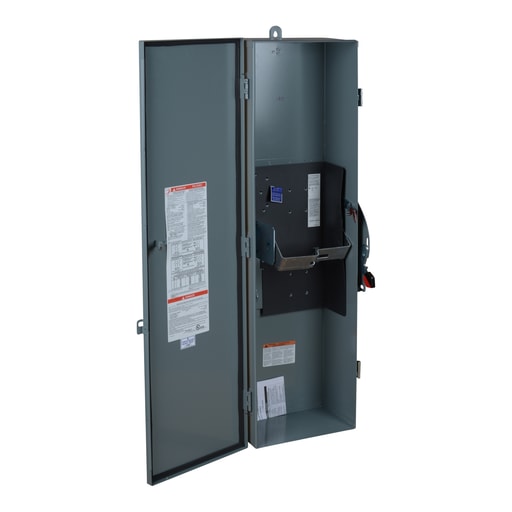

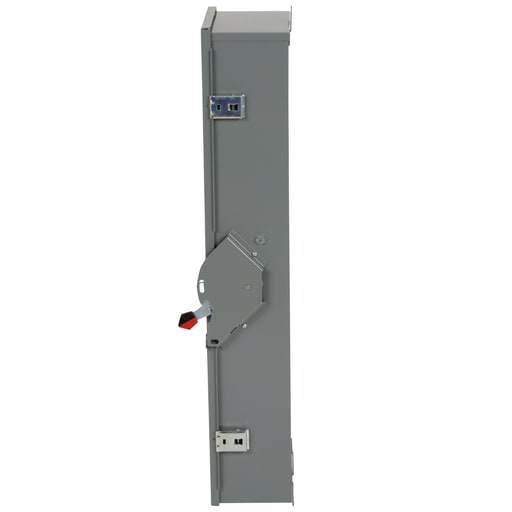

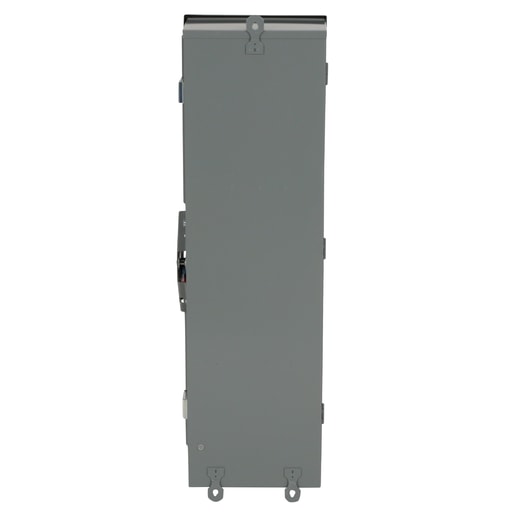

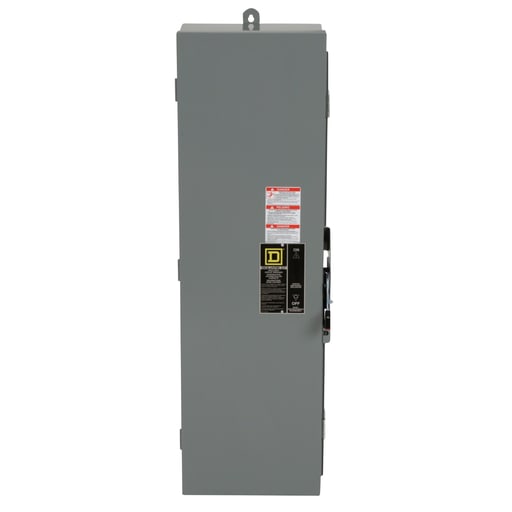

Square-D / Schneider - Square D LA400AWK 13.75 x 7.25 x 42.25 Inch NEMA 3R/12 Surface Mount Circuit Breaker Enclosure

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901027195

  • Amperage - 125400 Amp

  • Applications - CIRCUIT BREAKER LAL/LHL/Q4L 125-400 A

  • Catalog Number - LA400AWK

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785901027195

Part #

268231

Catalog #

LA400AWK

Commercial reference

LA400AWK

12-Digit UPC:

785901027195

Amperage:

125400 Amp

Applications:

CIRCUIT BREAKER LAL/LHL/Q4L 125-400 A

Catalog Number:

LA400AWK

Country of Origin:

Mexico

ERP_productname:

SQD LA400AWK ENCLOSURE FOR CRKT BREAKER NEMA 12 & 3R

Enclosure:

STEEL

Family Brand Name:

Square D

Frame:

L

Material:

Steel

Type:

ENCLOSURE

SoneparProductId:

SKU_US_26150469

The enclosures for the family of LA circuit breakers are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 100% rated circuit breakers unless otherwise noted.  This is a LA,LH Circuit Breaker enclosure can accept 2 and 3 pole circuit breakers that has a current rating of 125-400A and is NEMA 12/3R enclosure. This product comes with an 18 month warranty. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: LAL26200; LAL26250; LAL26250MB; LAL26300; LAL26300MB; LAL26350; LAL36150; LAL36225MB; LAL363001021; LAL36350MB; LAL364001021; LAL3640035M; LAL3640036M; LHL26300; LHL36350; LHL364001021; LHP36300MB; LHP36400MB; Q4L2300; Q4L2400; Q4L3250; Q4L3300; Q4L3350; Q4L3400; SN225KA; 400SN; SN400LA; PKOGTA2; LAL26400; LAL36400; LAL36225; LHL26400; LHL36400; LHL36225
