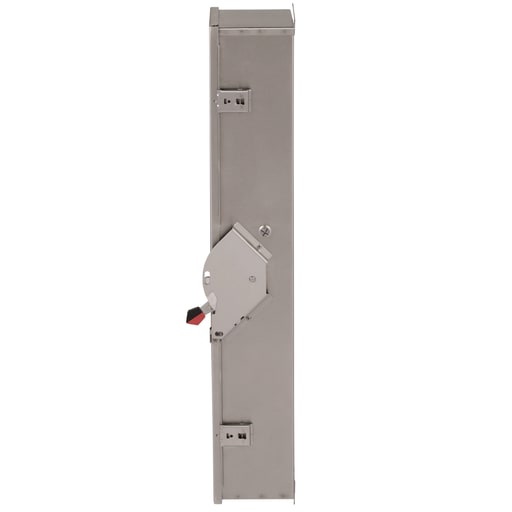

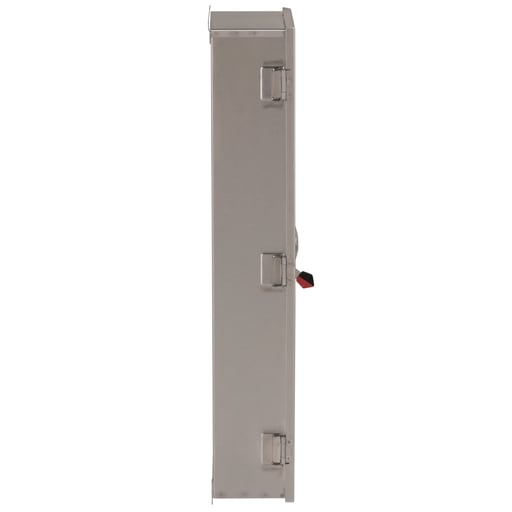

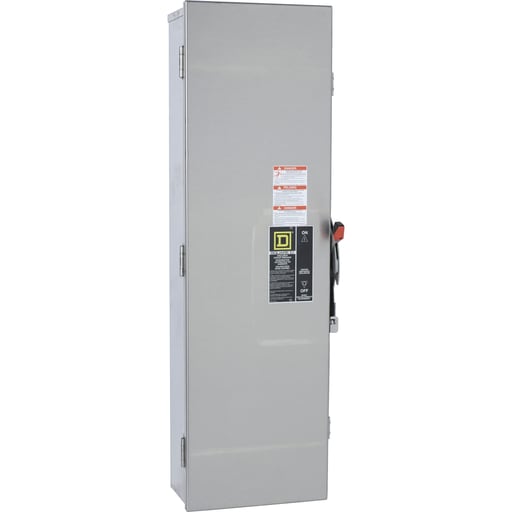

Square-D / Schneider - Square D LA400DS 13.75 x 7.25 x 42.25 Inch NEMA 4/4X/5 Surface Mount Circuit Breaker Enclosure

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901148661

  • Amperage - 125...400 Amp

  • Catalog Number - LA400DS

  • Circuit Breaker Type - LAL,LHL,Q4L

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785901148661

Part #

170343

Catalog #

LA400DS

Commercial reference

LA400DS

12-Digit UPC:

785901148661

Amperage:

125...400 Amp

Catalog Number:

LA400DS

Circuit Breaker Type:

LAL,LHL,Q4L

Country of Origin:

Mexico

Current:

400 Amp

Depths:

184 mm

ERP_productname:

SQD LA400DS ENCLOSURE FOR CIRCUIT BRKR NEMA 44X 5

Enclosure:

STAINLESS STEEL

Enclosure Material:

Stainless Steel

Family Brand Name:

Square D

Heights:

1073 mm

Length:

184 mm

Material:

Stainless Steel

Number of Poles:

2P,3 Pole

Size:

NEMA 4

Type:

LAL-LHL-Q4L

Widths:

349 mm

SoneparProductId:

SKU_US_26366930

The enclosures for the family of LA circuit breakers are cULus listed unless otherwise noted. The enclosures are suitable for service entrance equipment when neutral assembly is installed. The short circuit current rating of the enclosed circuit breakers is equal to the rating of the circuit breaker installed unless otherwise noted. All enclosures will accept 100% rated circuit breakers unless otherwise noted.  This is a LA,LH Circuit Breaker enclosure can accept 2 and 3 pole circuit breakers that has a current rating of 125-400A and is NEMA 4/4X/5 enclosure. This enclosure is for LA frame breakers. This product comes with an 18 month warranty. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: LAL26200; LAL26250; LAL26250MB; LAL26300; LAL26300MB; LAL26350; LAL36150; LAL36225MB; LAL363001021; LAL36350MB; LAL364001021; LAL3640035M; LAL3640036M; LHL26300; LHL36350; LHL364001021; LHP36300MB; LHP36400MB; Q4L2300; Q4L2400; Q4L3250; Q4L3300; Q4L3350; Q4L3400; SN225KA; SN400LA; PKOGTA2; LAL26400; LAL36400; LAL36225; LHL26400; LHL36400; LHL36225
