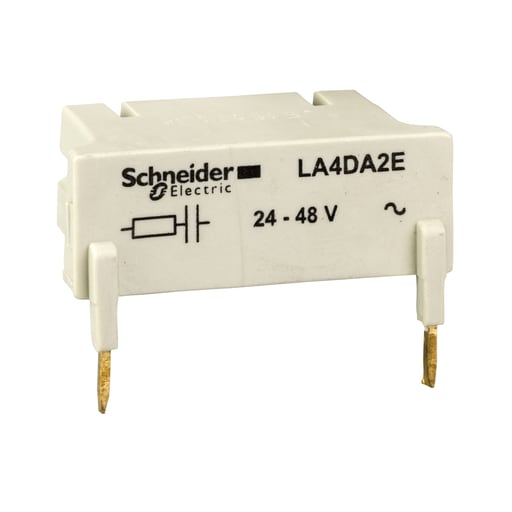

Square-D / Schneider - Square D LA4DA2E 24 to 48 VAC at 400 Hz RC Circuit Type Coil Suppressor Module
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110233042
Applications - 3P LC1D80...D150-4P LC1D80004...D115004-4P LC1D40008...D80008
Catalog Number - LA4DA2E
Coil Voltage - 24 to 48@50/60Hz V
Country of Origin - Bulgaria
Packaging
1 ea
EAN
03389110233049
Part #
227504
Catalog #
LA4DA2E
Commercial reference
LA4DA2E
12-Digit UPC:
389110233042
Applications:
3P LC1D80...D150-4P LC1D80004...D115004-4P LC1D40008...D80008
Catalog Number:
LA4DA2E
Coil Voltage:
24 to 48@50/60Hz V
Country of Origin:
Bulgaria
ERP_productname:
SQD LA4DA2E CONTACTOR+RELAY SUPPRESSOR LC1+LP1
Family Brand Name:
Schneider Electric
Mounting Type:
Screws
Sub Brand:
TESYS,TESYS D
Type:
Suppressor module;RC circuit
SoneparProductId:
SKU_US_26640838
TeSys D suppressor module, for LC1D80-D150 (3P), LC1D40-D115 (4P) contactors. To be used with 24-48V AC control circuit voltage, it provides RC protection limiting the transient voltage to 3 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh). Compatible Products: LC1D40008E7; LC1D80B7; LC1D115B7; LC1D80E7; LC1D95B7; LC1D95E7; LC1D80008E7; LC1D65008E7; LC1D115E7; LC1D150B7; LC1D80D7; LC1D150E7; LC1D80AB7; LC1D80AE7; LC1D1156B7; LC1D40008B7; LC1D80004B7; LC1D80004E7; LC1D1506B7; LC1D80B5; LC1D115004B7; LC1D40004E7; LC1D806B7; LC1D65008B7; LC1D65008D7; LC1D80A3E7 - Cross Sell Products: LRD332
