Square-D / Schneider - Square D LA4DB3B CONTACTOR+RELAY SUPPRESSOR
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110336507
Applications - 4P LC1D40008...D80008-3P LC1D80...D95-4P LC1D80004
Catalog Number - LA4DB3B
Coil Voltage - 24 V
Country of Origin - Bulgaria
Packaging
1 ea
EAN
03389110336504
Part #
346634
Catalog #
LA4DB3B
Commercial reference
LA4DB3B
12-Digit UPC:
389110336507
Applications:
4P LC1D40008...D80008-3P LC1D80...D95-4P LC1D80004
Catalog Number:
LA4DB3B
Coil Voltage:
24 V
Country of Origin:
Bulgaria
ERP_productname:
SQD LA4DB3B SUPPRESSOR MODULE, TESYS DECA, BIDIRECTIONAL PEAK LIMITING DIODE, 24VDC
Family Brand Name:
Schneider Electric
Mounting Type:
Screws
Sub Brand:
TESYS,TESYS D
Type:
Suppressor module;Bidirectional peak limiting diode
SoneparProductId:
SKU_US_32024191

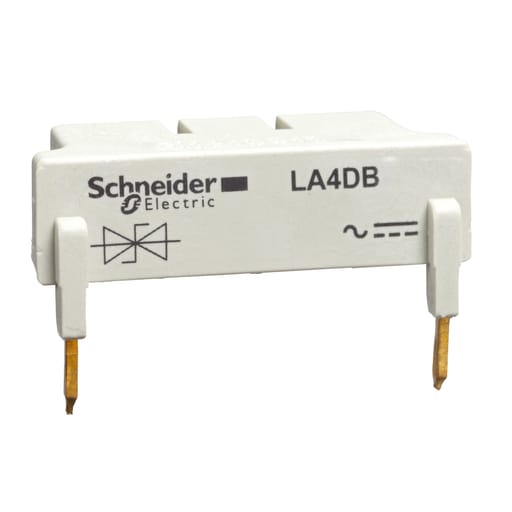

TeSys D suppressor module, for LC1D80-D95 (3P), LP1D40-D80 (4P) contactors. To be used with 24V DC control circuit voltage, it provides bidirectional peak limiting diodes protection limiting the transient voltage to 2 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Green Premium compliant (RoHS/REACh). Compatible Products: LC1D80BD; LC1D95BD; LC1D115BD; LC1D806BD; LP1D80004BD; LP1D40008BD; LP1D80008BD; LC1D1156BD; LC1D65BD; LC1D80BW; LP1D65008BD; LP1D80004BW; LC1D115004BD; LC1D1150046BD; LC1D956BD; LP1D65004BD - Cross Sell Products: LRD365
