Square-D / Schneider - Square D LA7D902 Bi-Metallic Overload Relay Mounting Plate
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110122629
Applications - Mounting accessory;LR2D35..;LR3D3..;LRD3...
Catalog Number - LA7D902
Country of Origin - France
Depths - 10 mm
Packaging
1 ea
EAN
03389110122626
Part #
201148
Catalog #
LA7D902
Commercial reference
LA7D902
12-Digit UPC:
389110122629
Applications:
Mounting accessory;LR2D35..;LR3D3..;LRD3...
Catalog Number:
LA7D902
Country of Origin:
France
Depths:
10 mm
ERP_productname:
SQD LA7D902 BIMETALIC O/RELAY MOUNTING PLATE IEC
Family Brand Name:
Schneider Electric
Heights:
126 mm
Size:
0.39 in
Sub Brand:
LA7D
Type:
Mounting kit
Widths:
75 mm
SoneparProductId:
SKU_US_26304722

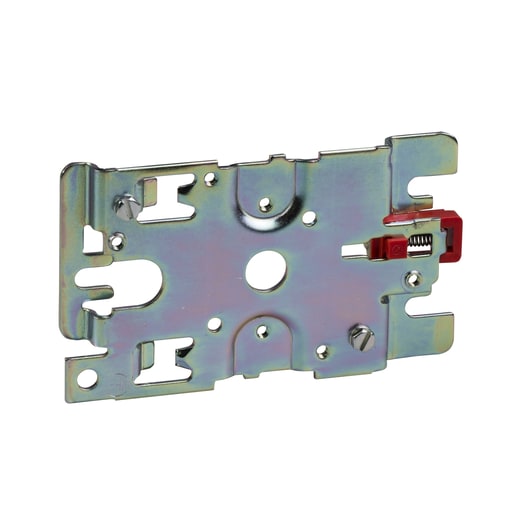

TeSys LRD mounting plate, for LRD3**, LR3D3**, LR2D35** thermal overload relays. To be used when the overload relay is associated with the terminal block LA7D3064 (to be ordered separately). It provides screw fixing with 110 mm centres for the overload relay and terminal block assembly. Green Premium compliant (RoHS/REACh). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LRD3363 - Cross Sell Products: LC1D80M7
