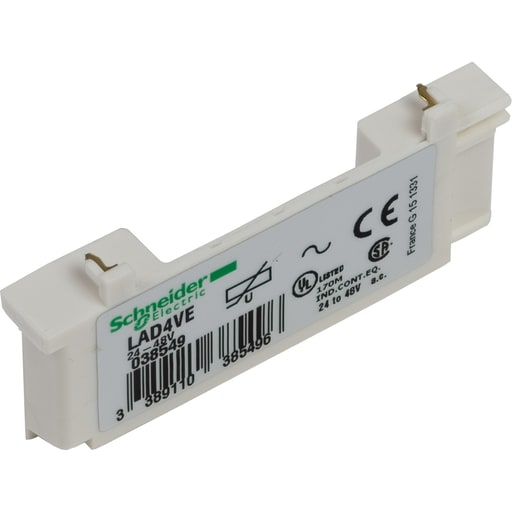

Square-D / Schneider - Square D LAD4VE 24 to 48 VAC Varistor Type Suppressor Module

Essential specifications

12-Digit UPC - 389110385499
Applications - VARISTORS - PROTECTION PROVIDED BY LIMITING THE TRANSIENT VOLTAGE TO 2 UC MAX
Catalog Number - LAD4VE
Coil Voltage - 24 to 48@50/60Hz V
Country of Origin - USA

Packaging

1 ea

EAN

03389110385496

Part #

200123

Catalog #

LAD4VE

Commercial reference

LAD4VE

12-Digit UPC:

389110385499

Applications:

VARISTORS - PROTECTION PROVIDED BY LIMITING THE TRANSIENT VOLTAGE TO 2 UC MAX

Catalog Number:

LAD4VE

Coil Voltage:

24 to 48@50/60Hz V

Country of Origin:

USA

ERP_productname:

SQD LAD4VE VARISTOR-CLIP ON CONTACTOR D09.38 3P 24/48

Family Brand Name:

Schneider Electric

Mounting Type:

Clips

Sub Brand:

TESYS

Tc Connection:

SNAPPING INTO THE CAVITY ON THE RIGHT SIDE OF THE CONTACTOR WITHOUT TOOLS

Type:

Suppressor module;Varistor (peak limiting)

SoneparProductId:

SKU_US_26450999

TeSys D suppressor module, for LC1D09-D38, LC1DT20-DT40 contactors and CAD control relays. To be used with 24-48V AC control circuit voltage, it provides a varistor protection limiting the transient voltage to 2 Uc max. Clip-on side mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh). Compatible Products: LC1D09B7; LC1D12B7; LC1D18B7; LC1D32B7; LC1D25B7; LC1D09E7; LC1D25E7; LC1D12E7; LC1D18E7; LC1D32E7; LC1D128E7; LC1D258E7; LC1D38B7; LC1D123B7; LC1D098E7; LC1DT25E7; LC1D323B7; LC1D123E7; LC1DT20B7; LC1DT25B7; LC1D25D7; LC1D09D7; LC1D12D7; LC1DT40E7; LC1D188E7; LC1D18D7; LC1D253B7; LC1D183B7; LC1D183E7; LC1D128B7; LC1D186B7; LC1D093B7; LC1D32D7; LC1D258D7; LC1D098B7; LC1DT32B7; LC1DT40B7; LC1D258B7; LC1D128D7; LC1D326B7; LC1D096B7; LC1D09FC7; LC1DT32E7; LC1D188B7; LC1D40B7; LC1D256B7; LC1D188D7; LC1DT326B7; LC1DT40D7; LC1D40E7; LC1D126B7; LC1D2583E7; LC1D253E7
