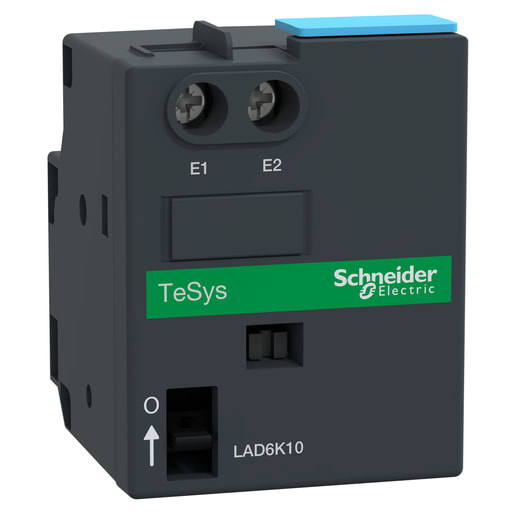

Square-D / Schneider - Square D LAD6K10F 690 Volt 30 W Contactor Mechanical Latch Contact Block

Essential specifications

12-Digit UPC - 389110842381
Applications - LC1DT60A...DT80A;TeSys D control relays;LC1D09...D38;LC1D40A...D65A;LC1DT20...DT40
Catalog Number - LAD6K10F
Coil Voltage - 110/127@50/60Hz/110/127@ VAC
Country of Origin - France

Packaging

1 ea

EAN

03389110842388

Part #

107597

Catalog #

LAD6K10F

Commercial reference

LAD6K10F

12-Digit UPC:

389110842381

Applications:

LC1DT60A...DT80A;TeSys D control relays;LC1D09...D38;LC1D40A...D65A;LC1DT20...DT40

Catalog Number:

LAD6K10F

Coil Voltage:

110/127@50/60Hz/110/127@ VAC

Country of Origin:

France

ERP_productname:

SQD LAD6K10F CONTACTOR MECH. LATCH CONTACT BLOCK IEC

Family Brand Name:

Schneider Electric

Sub Brand:

TESYS,TESYS D-TESYS D CONTROL RELAY

Type:

Mechanical latch block

SoneparProductId:

SKU_US_26432746

TeSys Deca mechanical latch block, for LC1D09-D80A, LC1DT20-DT80A contactors and CAD control relays (except devices with low consumption coils). Electrical latching and unlatching is performed applying a 110-127V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh). Cross Sell Products: CAD323BD; CAD50E7; CAD50ED; CAD323B7
