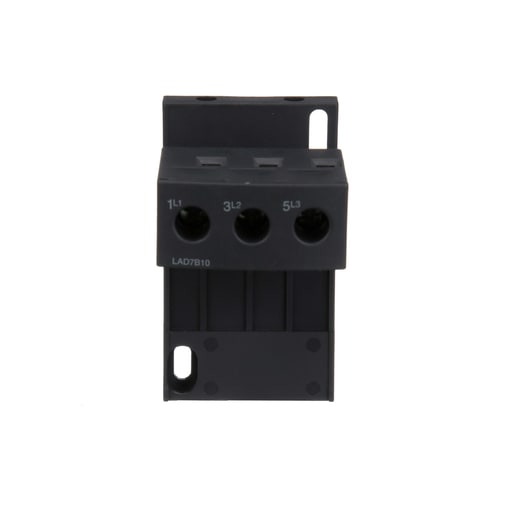

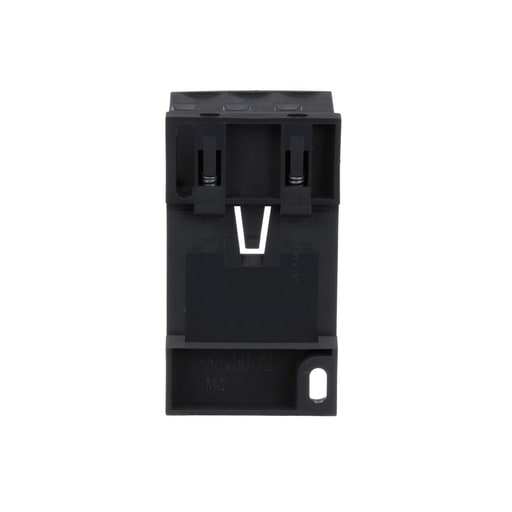

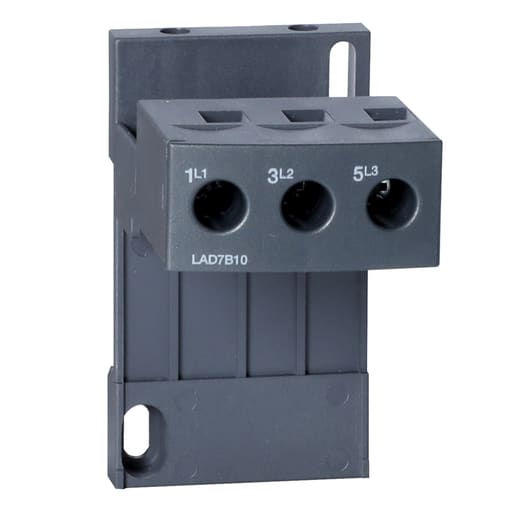

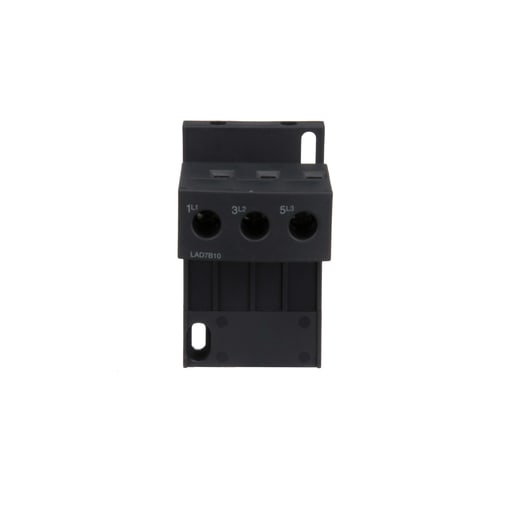

Square-D / Schneider - Square D LAD7B10 Screw Terminal 35 mm Rail Mounting Terminal Block

Essential specifications

12-Digit UPC - 389110534293
Applications - TERMINAL BLOCKS FOR SEPARATE MOUNTING ON 35MM RAIL (AM1DP200) OR PANEL LR3D01...D35 AND LRD01...35 OVERLOAD RELAYS
Catalog Number - LAD7B10
Country of Origin - Czechia
ERP_productname - SQD LAD7B10 TERMINAL BLOCK MOUNTING KIT

Packaging

1 ea

EAN

03389110534290

Part #

194455

Catalog #

LAD7B10

Commercial reference

LAD7B10

12-Digit UPC:

389110534293

Applications:

TERMINAL BLOCKS FOR SEPARATE MOUNTING ON 35MM RAIL (AM1DP200) OR PANEL LR3D01...D35 AND LRD01...35 OVERLOAD RELAYS

Catalog Number:

LAD7B10

Country of Origin:

Czechia

ERP_productname:

SQD LAD7B10 TERMINAL BLOCK MOUNTING KIT

Family Brand Name:

Schneider Electric

Number of Poles:

3 Pole

Sub Brand:

TESYS

Tc Connection:

SCREW CLAMP

Type:

OVERLOAD RELAY TERMINAL BLOCK

SoneparProductId:

SKU_US_69894761

TeSys LRD overload relays can be mount separately from the contactor to make panel layout easier in some cases. To mount the overload relay separately and to have a connection terminal, this adaptor is used. This adaptor will work with LRD01 through LRD35 and LR3D01 through R3D35 overload relays. This adaptor bracket has screw clamp terminals. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LRD08 - Cross Sell Products: LC1D09M7
