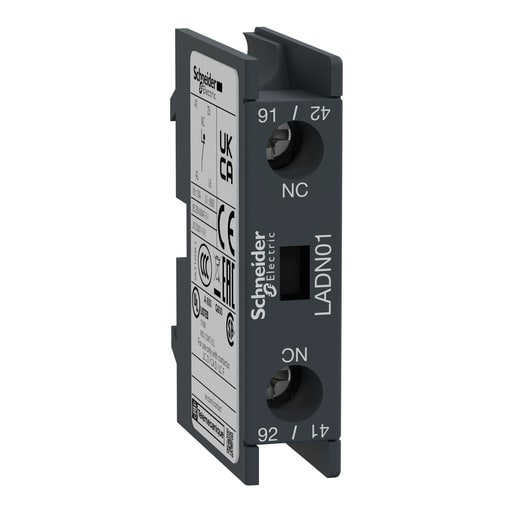

Square-D / Schneider - Square D LADN01 690 VAC 10 Amp 2-Pole 1NC Front Mount Screw Clamp Terminal Contactor Auxiliary Contact

Essential specifications

12-Digit UPC - 389110383723
Applications - INSTANTANEOUS AUXILIARY
Catalog Number - LADN01
Coil Voltage - 690 V AC 25...400 HZ
Color - Gray

Packaging

1 ea

EAN

03389110383720

Part #

219329

Catalog #

LADN01

Commercial reference

LADN01

12-Digit UPC:

389110383723

Applications:

INSTANTANEOUS AUXILIARY

Catalog Number:

LADN01

Coil Voltage:

690 V AC 25...400 HZ

Color:

Gray

Country of Origin:

France

Depths:

35 mm

ERP_productname:

SQD LADN01 IEC AUX CONTACT BLOCK

Family Brand Name:

Schneider Electric

Heights:

48 mm

Sub Brand:

TESYS,TESYS D-TESYS F

Tc Connection:

SCREW CLAMP TERMINALS 1 1-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMA.SOLID WITH CABLE END- SCREW CLAMP TERMINALS 1 1-2.5 MMA.SOLID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA.SOLID WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA.SOLID WITHOUT CABLE END

Type:

AUXILIARY CONTACT BLOCK

Voltage:

690 Volt

Widths:

13 mm

SoneparProductId:

SKU_US_26451409

LADN01 is a Schneider Electric add-on auxiliary contact block for TeSys D and TeSys F contactors. Front mounting block, it provides 1NC instantaneous contact rated up to 10A 690V AC. It can be used in safety applications. LADN01 is a Schneider Electric add-on auxiliary contact block for TeSys D and TeSys F contactors. It provides 1NC instantaneous contacts rated up to 10A 690V AC. It can be used in safety applications thanks to its NC certified mirror contact. Easy to mount on front by clip-on, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Add-on block with 1NC auxiliary contact, with instantaneous operation. Suitable to be included in the control of safety systems thanks to its NC certified mirror contact. High electrical durability , several millions of operating cycles in AC-14/AC-15/DC-13 according conditions. Mounting by clip-on on front of all TeSys D and TeSys F contactors. Compatible Products: LC1D80M7 - Cross Sell Products: GV2AF3
