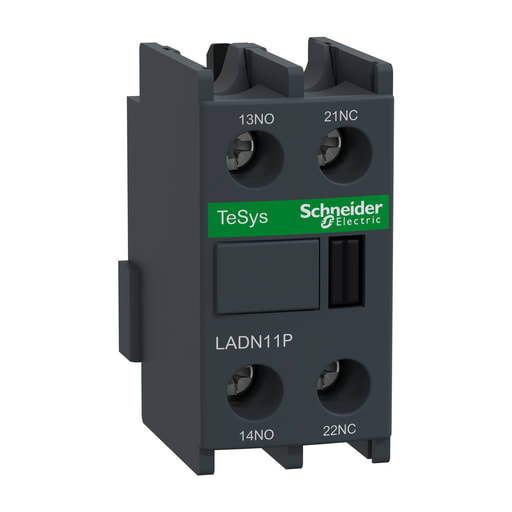

Square-D / Schneider - Square D LADN11P Auxiliary Contact Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 891103838504
Catalog Number - LADN11P
Color - Gray
Country of Origin - France
Depths - 42 mm
Packaging
1 ea
EAN
03389110383850
Part #
182833
Catalog #
LADN11P
Commercial reference
LADN11P
12-Digit UPC:
891103838504
Catalog Number:
LADN11P
Color:
Gray
Country of Origin:
France
Depths:
42 mm
ERP_productname:
SQD LADN11P RELAY AUXILIARY CONTACT 575VAC 10A IEC
Family Brand Name:
Schneider Electric
Heights:
48 mm
Voltage:
690 Volt
Widths:
26 mm
SoneparProductId:
SKU_US_84428893
TeSys D instantaneous auxiliary contact block, for 4-pole contactors LC1D, LC1DT (<= 80A AC-1). It provides 1NO+1NC contacts (NC mirror certified) rated up to 10A 690V AC, connection by screw clamp terminals, with terminal referencing conforming to EN 50012. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). Compatible Products: LC1D40AM7 - Cross Sell Products: GV2AF3; LRD340
