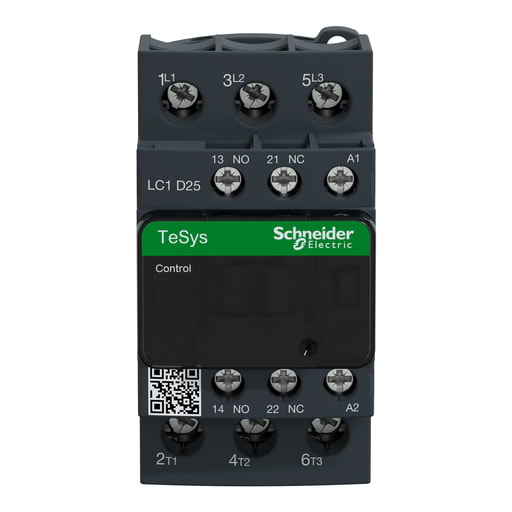

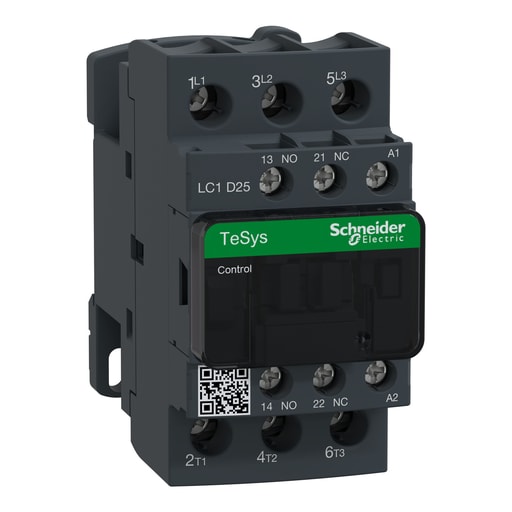

Square-D / Schneider - Square D LC1D25G7 600 VAC 25 Amp 3-Pole 1NO 1NC Screw Terminal Full Voltage Non-Reversing IEC Contactor

Essential specifications

12-Digit UPC - 389110349736
Applications - Motor control;Resistive load
Catalog Number - LC1D25G7
Coil Voltage - 120 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Country of Origin - Indonesia

Packaging

1 ea

EAN

03389110349733

Part #

120908

Catalog #

LC1D25G7

Commercial reference

LC1D25G7

12-Digit UPC:

389110349736

Applications:

Motor control;Resistive load

Catalog Number:

LC1D25G7

Coil Voltage:

120 V AC 50/60 HZ,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC

Country of Origin:

Indonesia

Depths:

92 mm

ERP_productname:

SQD LC1D25G7 25A 120V CONTACTOR

Family Brand Name:

Schneider Electric

Heights:

85 mm

Impedance:

2 MOhm - Ith 40 A 50 Hz For Power Circuit

Size:

45 MM,85 MM,92 MM

Sub Brand:

TeSys D;TeSys Deca

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1.5-6 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1.5-10 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 2.5-10 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 2.5-10 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 2.5-10 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-10 MMA.FLEXIBLE WITH CABLE END

Type:

Contactor

Voltage:

300 Volt

Wattage:

3.2 Watt AC-1 - 1.25 Watt AC-3

Widths:

45 mm

SoneparProductId:

SKU_US_69894729

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 25A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 7.5HP at 200-208VAC, 7.5HP at 240VAC, 15HP at 480VAC and 20HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 3HP at 240VAC single phase. When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 60A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.62 inches deep. It weighs 0.82 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN22; LAD4RCU; LADN11; LADN20; LAD8N11; LAD9V2; LAD9R1V; LADT2; LAD9R1; LADN40; LADN31; LADN02; LADT0; LAD4VG; LAD8N20; LAD4RCG; LADS2; LADR2; LAD9V6; LADR0; LADN22S; LADN04; LADN13; LAD4VU; LAD9V5; LAD6K10F; LAD9ET1S; LADR4; LADT4; LAD8N02; LA4DFB; LA9D3260; LAD9ET1; LA4DT2U; LA4DWB; LA4DT0U; LA4DT4U; GV2G445; GV2G245 - Cross Sell Products: GV2P22; GV2ME22; GV2L22; GV2LE22; LRD22 - Spare Part Products: LXD1G7
