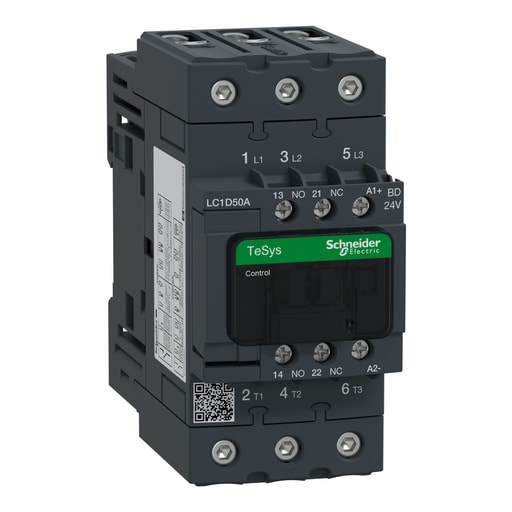

Square-D / Schneider - Square D LC1D50ABD TeSys D Everlink 50 Amp DC 3-Pole AC-3 Category IEC Contactor

Essential specifications

12-Digit UPC - 389119408786
Applications - Resistive load;Motor control
Catalog Number - LC1D50ABD
Coil Voltage - 24 V DC,24 V DC STANDARD,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC
Country of Origin - France

Packaging

1 ea

EAN

03389119408783

Part #

180663

Catalog #

LC1D50ABD

Commercial reference

LC1D50ABD

12-Digit UPC:

389119408786

Applications:

Resistive load;Motor control

Catalog Number:

LC1D50ABD

Coil Voltage:

24 V DC,24 V DC STANDARD,POWER CIRCUIT <= 690 V AC 25...400 HZ-POWER CIRCUIT <= 300 V DC

Country of Origin:

France

Depths:

120 mm

ERP_productname:

SQD LC1D50ABD TESYS D 3P EVERLINK DC CONTACTOR AC3 50A IEC

Family Brand Name:

Schneider Electric

Heights:

122 mm

Impedance:

1.5 MOhm - Ith 80 A 50 Hz For Power Circuit

Size:

120 MM,122 MM,55 MM

Sub Brand:

TeSys D;TeSys Deca

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CONNECTION 1 1-35 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CONNECTION 2 1-25 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT SCREW CONNECTION 1 1-35 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CONNECTION 2 1-25 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CONNECTION 1 1-35 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT SCREW CONNECTION 2 1-25 MMA.SOLID WITHOUT CABLE END

Type:

Contactor

Voltage:

300 Volt

Wattage:

3.7 Watt AC-3 - 9.6 Watt AC-1

Widths:

55 mm

SoneparProductId:

SKU_US_70000826

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 50A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 15HP at 200 to 208VAC, 15HP at 240VAC, 40HP at 480VAC and 40HP at 600VAC three phase. Contactor is also rated for 3HP at 115VAC and 7.5HP at 240VAC single phase. When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 110A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LADN22; LAD4D3U; LADN11; LADN20; GV3G264; LADT2; LAD9R3; LADN40; LAD6K10B; LADN31; LADN02; LADT0; LADS2; LADR2; LADR0; LADN04; LADN13; LAD4CM; LAD9ET1S; LADR4; LADT4; LAD4T3B - Cross Sell Products: GV3P50; LRD350; GV3L50
