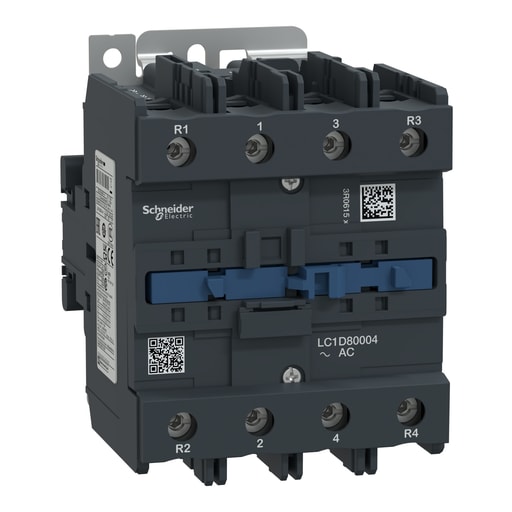

Square-D / Schneider - Square D LC1D80004G7 CONTACTOR 575VAC 80AMP IEC +OPTIONS
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110265586
Applications - Resistive load
Catalog Number - LC1D80004G7
Coil Voltage - 120 V AC 50/60 HZ,POWER CIRCUIT <= 300 V DC 25...400 HZ-POWER CIRCUIT <= 690 V AC
Country of Origin - Czechia
Packaging
1 ea
EAN
03389110265583
Part #
135309
Catalog #
LC1D80004G7
Commercial reference
LC1D80004G7
12-Digit UPC:
389110265586
Applications:
Resistive load
Catalog Number:
LC1D80004G7
Coil Voltage:
120 V AC 50/60 HZ,POWER CIRCUIT <= 300 V DC 25...400 HZ-POWER CIRCUIT <= 690 V AC
Country of Origin:
Czechia
Depths:
125 mm
ERP_productname:
SQD LC1D80004G7 CONTACTOR 575VAC 80AMP IEC +OPTIONS
Family Brand Name:
Schneider Electric
Heights:
127 mm
Impedance:
0.8 MOhm - Ith 125 A 50 Hz For Power Circuit
Size:
125 MM,127 MM,96 MM
Sub Brand:
TeSys D
Tc Connection:
CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMA.FLEXIBLE WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 2 4-16 MMA.FLEXIBLE WITH CABLE END-POWER CIRCUIT CONNECTOR 1 4-50 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT CONNECTOR 2 4-25 MMA.SOLID WITHOUT CABLE END
Type:
Contactor
Voltage:
300 Volt
Wattage:
12.5 Watt AC-1
Widths:
96 mm
SoneparProductId:
SKU_US_29113222
